What is the Difference Between Piston Check Valve and Lift Check Valve?
1 Introduction
When selecting the right check valve for industrial applications, engineers often compare piston check valves and lift check valves. Both designs prevent backflow and protect equipment, but they differ in structure, performance, and applications. Many buyers and plant operators ask: What is the difference between piston check valve and lift check valve? This article provides a comprehensive comparison of these two valves, helping you make an informed decision for your system.
2 What Is a Piston Check Valve?

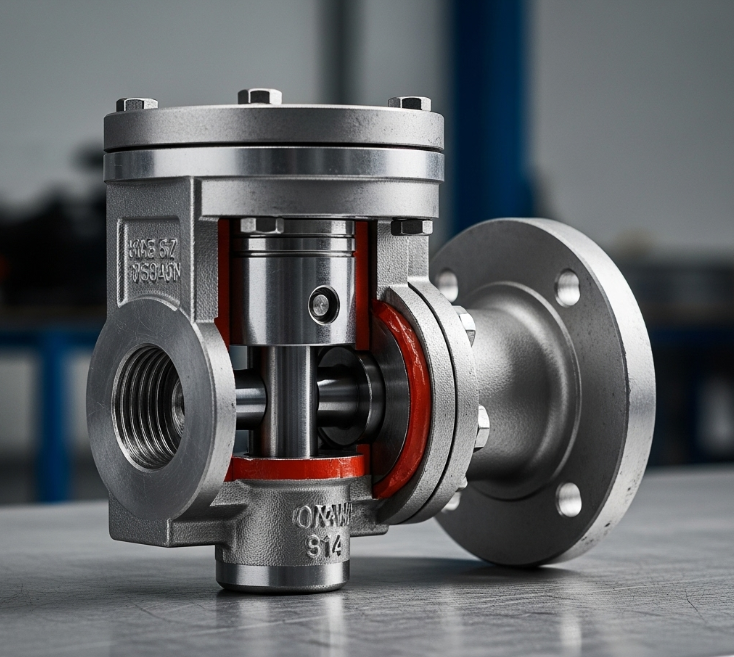

A piston check valve is a type of lift-type valve in which the disc is shaped like a piston and moves within a guided cylinder. This guided movement ensures smooth operation, minimizes misalignment, and provides excellent sealing.
-
Structure: It consists of a cylindrical piston disc, seat, body, guide bushing, and spring (optional).
-
Working principle: When fluid flows in the forward direction, the piston lifts; when reverse flow occurs, gravity and back pressure push the piston back to the seat.
-
Applications: Widely used in high-pressure steam systems, petrochemical plants, thermal power plants, and high-temperature pipelines due to its durability and excellent sealing.
-
Advantages: Better alignment, reduced water hammer, suitable for harsh conditions.
3 What Is a Lift Check Valve?
A lift check valve is one of the most common types of check valves. It features a disc that moves vertically within the valve body, opening under forward flow and closing under reverse flow.
-
Structure: Typically includes a cone or disc-shaped disc, valve body, and seat.
-
Variants: Includes vertical lift check valves (installed in vertical pipelines) and horizontal lift check valves.
-
Applications: Common in water supply systems, gas pipelines, oil processing, and general industrial applications.
-
Advantages: Simple design, easy maintenance, cost-effective solution for preventing backflow.
4 8 Differences Between Piston Check Valve and Lift Check Valve
4-1 Structural Differences
-
Piston check valve: the Disc is shaped like a piston, guided within a bushing. Offers precise alignment and smoother closure.
-
Lift check valve: Disc is cone- or flat-shaped, lifts freely without piston guidance. Simpler, but less precise.
4-2 Working Principle
-
Piston check valve: Guided piston ensures stable movement and minimizes wear. Suitable for fluctuating flow conditions.
-
Lift check valve: Relies purely on gravity and flow pressure. Faster closing but can cause more water hammer.
4-3 Pressure and Temperature Performance
-
Piston check valve: Handles high pressure and high temperature, often used in power plants and refineries.
-
Lift check valve: Suitable for moderate pressure and temperature systems, such as water or clean fluids.
4-4 Sealing Performance
-
Piston check valve: Provides tight sealing thanks to guided piston alignment with the seat.
-
Lift check valve: Sealing is effective, but may degrade faster under fluctuating pressures.
4–5 Materials and Size Range
-
Piston check valve: Available in carbon steel, stainless steel, alloy steel, often designed for critical industries.
-
Lift check valve: More commonly produced in cast iron, bronze, carbon steel, covering a wider standard range.
4-6 Installation and Orientation
-
Piston check valve: Can be installed in horizontal or vertical pipelines with guided stability.
-
Lift check valve: Works best as a vertical lift check valve in vertical flow lines; orientation is more limited.
4-7 Maintenance and Service Life
-
Piston check valve: Longer service life, but requires more complex maintenance (due to piston and guide wear).
-
Lift check valve: Easier to service and replace, though may need more frequent maintenance in demanding conditions.
4-8 Cost Considerations
-
Piston check valve: More expensive, but ideal for critical, high-value systems where performance is crucial.
-
Lift check valve: Cost-effective, widely used in general industrial and commercial applications.
5 Piston Check Valve VS Lift Check Valve
When comparing lift check valve vs piston check valve, the choice depends on system requirements:
-
If your system involves high pressure, steam, or aggressive media, a piston lift check valve offers superior sealing, durability, and reliability.
-
If you require a simple, low-cost backflow prevention solution for water, oil, or gas, a lift type check valve is sufficient.
-
For specialized industries like power generation, petrochemical, and metallurgy, piston check valves are recommended.
-
For general industrial pipelines, water treatment, and HVAC systems, lift check valves are the more practical choice.
| Comparison | Piston Check Valve | Lift Check Valve |
|---|---|---|
| Structural characteristics | It has a piston-shaped valve disc installed in a guide sleeve, which makes the movement more stable. | The valve disc is flat or conical and rises and falls depending on the fluid pressure. |
| How it works | The piston slides up and down in a guide structure, providing controlled closing and reducing shock. | The fluid pushes up the valve disc in the forward direction, and the valve disc falls down and closes due to gravity and back pressure when the fluid flows in the reverse direction. |
| Pressure and temperature performance | Suitable for high pressure and high temperature applications such as steam pipelines and power plants. | More suitable for medium and low pressure conditions, generally used for cleaning fluids. |
| Sealing performance | The guide structure ensures that the piston fits tightly against the valve seat, resulting in better sealing performance. | Relying on gravity and back pressure sealing, the sealing performance is relatively average. |
| Material and size range | Commonly used for high temperature and pressure resistant materials such as alloy steel and stainless steel, suitable for large size pipelines. | Commonly found in cast iron, carbon steel, and stainless steel, they have a flexible size range but lower pressure ratings. |
| Installation direction | Can be mounted horizontally or vertically, but horizontal is generally recommended for optimal performance. | In most cases, vertical installation (vertical lift check valve) is required to ensure that the valve disc moves sensitively. |
| Maintenance and lifespan | The structure is complex and the guide sleeve and piston need to be maintained regularly. It has a long service life but the maintenance cost is slightly higher. | The structure is simple and maintenance is convenient, but the service life is greatly affected by fluid impact and working conditions. |
| Cost considerations | It requires high manufacturing precision and is relatively expensive, suitable for critical working conditions. | Low cost, an economical choice for general industrial pipelines. |
| Typical Applications | High-pressure steam, power plant boilers, petrochemical systems, and fluid control in harsh working conditions. | Water systems, HVAC pipelines, general oil and gas and general industrial fluids. |
6 Conclusion
Both lift check valves and piston check valves are essential in preventing backflow, but their differences make them suitable for distinct applications. If you are evaluating, What is the difference between piston check valve and lift check valve?—remember that piston check valves excel in high-pressure and high-temperature systems, while lift check valves are favored for general-purpose, cost-efficient applications. Looking for reliable lift check valve applications or premium piston check valves? Contact LIXIN today for customized solutions that guarantee performance, durability, and global quality standards.
