A wafer check valve is a compact and efficient solution designed to prevent backflow in pipelines. Its slim profile, simple installation, and reliable performance make it a preferred choice across industries such as petroleum, chemical, power generation, and wastewater treatment. In this guide, we’ll explain what wafer check valves are, how they work, the different types, their applications, and why LIXIN Wafer Check Valves are trusted worldwide for quality and durability.

2 What is a Wafer Check Valves?

2-1 Definition

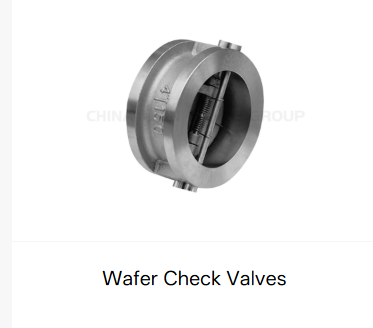

A wafer check valve (also called check wafer valve, wafer type check valve, or wafer style check valve) is a non-return valve that allows flow in one direction while automatically preventing reverse flow. Unlike bulky traditional check valves, it is designed to fit between two flanges, reducing weight and saving installation space.

2-2 Operating Principle

The principle is simple:

When fluid flows in the forward direction, pressure lifts or swings the disc open.
If flow reverses, the disc closes quickly to block backflow.

This automatic mechanism ensures system safety without manual intervention or external power.

2-3 Main Features and Advantages

Compact design – Takes up less space than conventional valves.
Low-pressure drop – Ensures efficient flow with minimal energy loss.
Easy installation – Fits directly between pipeline flanges.
Wide availability – Produced in multiple sizes such as 4 wafer check valve, 6 wafer check valve, and larger diameters.
Versatility – Works in water, steam, gas, oil, and slurry systems.

2-4 Application Scenarios

Wafer type check valves are widely used in:

Petroleum and chemical plants – Preventing reverse flow in processing lines.
Power generation – Protecting boilers and pumps.
Mining and metallurgy – Handling slurries and abrasive fluids.
Water & sewage treatment – Ensuring one-way water flow.
Pharmaceutical, paper, and sugar industries – Maintaining clean and reliable process flows.

2-5 Potential Disadvantages

Not ideal for extremely low flow rates, where closure may not be fast enough.
Can experience wear in high-cycling applications without regular inspection.

3 Types of Wafer Check Valves

3-1 Wafer swing check Valve

The wafer swing check valve uses a disc that swings on a hinge. It opens with forward flow and closes when flow stops or reverses. It is commonly used in water distribution and wastewater treatment systems.

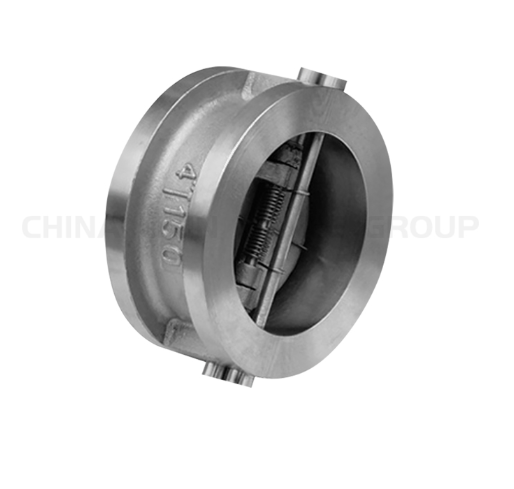

3-2 Dual Plate Wafer check Valve

Also known as a double-door design, this valve has two plates that open in the middle. Its compact structure makes it lighter and ideal for large-diameter pipelines in power and chemical industries.

3-3 Lift Wafer Type check Valve

The lift wafer check valve features a disc that lifts vertically to allow flow and drops back to close when the flow reverses. It is suitable for high-pressure systems, such as steam pipelines.

3-4 Spring-Loaded Wafer style check Valve

This design includes a spring mechanism that forces the disc to close rapidly, preventing even minor backflow. It is widely used in gas, oil, and high-speed flow systems where tight sealing is essential.

4 Material and Selection Considerations

Selecting the right wafer style check valve depends on application conditions:

Body Material: Cast iron, carbon steel, stainless steel, or special alloys for corrosion resistance.
Disc Options: Stainless steel, bronze, or rubber-coated discs depending on media.
Sealing Material: EPDM, NBR, PTFE, or metal-to-metal seals.
Size & Rating: From 4 wafer check valve / wafer check valve 4 to 6 wafer check valve and beyond, available in pressure classes PN10, PN16, Class 150, and higher.

5 Maintenance and Inspection

Proper care extends the service life of wafer type check valves:

Routine Inspection – Check for wear on the disc, hinge, or spring.
Cleaning – Remove debris or sediment buildup inside the valve.
Seal Check – Ensure gaskets remain intact for leak-free operation.
Lubrication – Some models require lubrication for hinges or moving parts.
Replacement – Swap out worn parts promptly to prevent system failures.

6 Key Factors in Selecting a Wafer Check Valve

When choosing the best wafer check valves, consider:

Application medium (water, steam, oil, slurry, gas).
Operating pressure and temperature.
Flow characteristics (steady or pulsating).
Installation space – wafer style check valves are ideal for tight layouts.
Manufacturer reputation – working with trusted wafer check valves manufacturers ensures long-term reliability.

7 Why Choose LIXIN Wafer Check Valve?

LIXIN, as a global valve manufacturer, provides a full range of industrial solutions, including Gate, Globe, Ball, Butterfly, Knife Gate, Plug, Bellow, Y-type Slurry, Ceramic valves, Traps, Filters, and more.

Advantages of LIXIN Wafer Check Valves:

Diverse sizes – from 4 wafer check valve to 6 wafer check valve and larger industrial diameters.
Complete product series – including swing, dual plate, lift, and spring-loaded check valve type wafer designs.
Material variety – stainless steel, carbon steel, cast iron, and special alloys.
Global recognition – widely used in petroleum, chemical, mining, metallurgy, power, lithium battery, alumina, pharmaceutical, and sewage treatment industries.
Proven track record – Exported to Southeast Asia, the Middle East, Europe, South America, and Africa, receiving long-term trust and praise from domestic and international customers.

With decades of expertise, LIXIN Wafer Check Valves guarantee durability, efficiency, and compliance with international standards.

8 Conclusion

A wafer check valve is a compact, efficient, and reliable solution to prevent backflow across industries. Understanding how wafer check valves work, the types of wafer check valves, and proper wafer check valves installation helps ensure system safety and performance. For enterprises seeking the best wafer check valves, choosing a trusted manufacturer is key. LIXIN Wafer Check Valves combine advanced engineering, high-quality materials, and proven global application experience. Contact LIXIN today to explore our full range of wafer type check valves and other industrial valve solutions, and partner with a manufacturer trusted worldwide for innovation and reliability.
