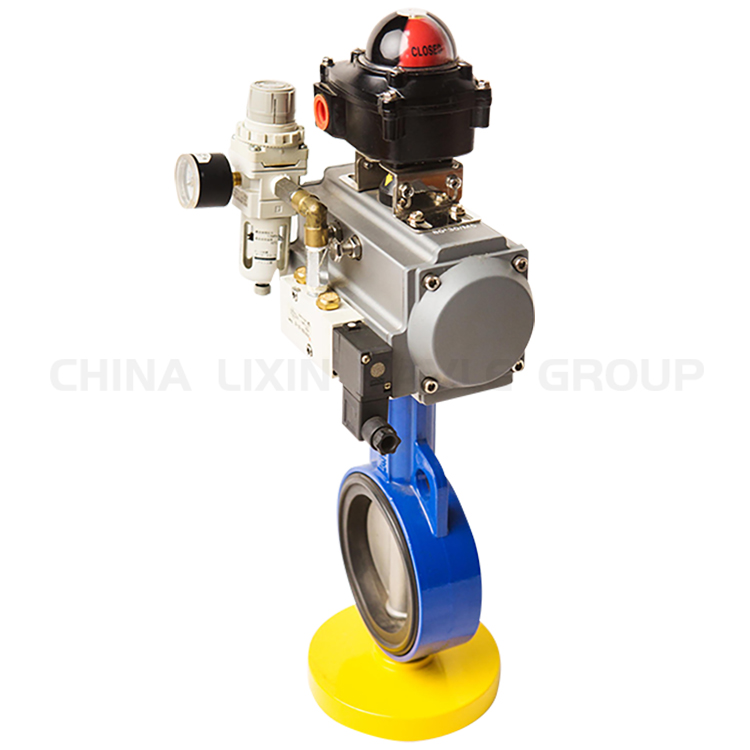

Central Line Butterfly Valves

Lixin Central Line Butterfly Valve are widely used in various industrial fluid control applications . The butterfly plate’s turning center is on the centerline of the valve body and the sealing face section of the butterfly plate. So that it called Central Line Butterfly Valve.

Main Features :

Lixin Central Line Butterfly Valve during closing, the butterfly plate’s ex-circle sealing face will extrude the valve seat made of synthetic rubber, generating elastic deformation on the seat to form an elastic force used as a sealing specific pressure so as to guarantee the tightness of the butterfly valve.

Design Features :

Installation easily, and maintenance friendly.

Reliable sealing;

Simple structure ;

Small opening/closing torque;

Long service life;

Valve Brand Lixin
Valve Structure Butterfly Valve
Valve Material Carbon Steel/ Stainless Steel/Alloy Steel etc.
Nominal Diameter 2″～180″
Valve End Connection RF, RTJ
Valve Pressure range Class150～2500
Working temperature -101℃～+650℃
MOQ 1 SET
Operation Wrench, Worm gear, Electric, Pneumatic, etc.
Certificate API 609, ASME B16.34, GB/T 12238.
