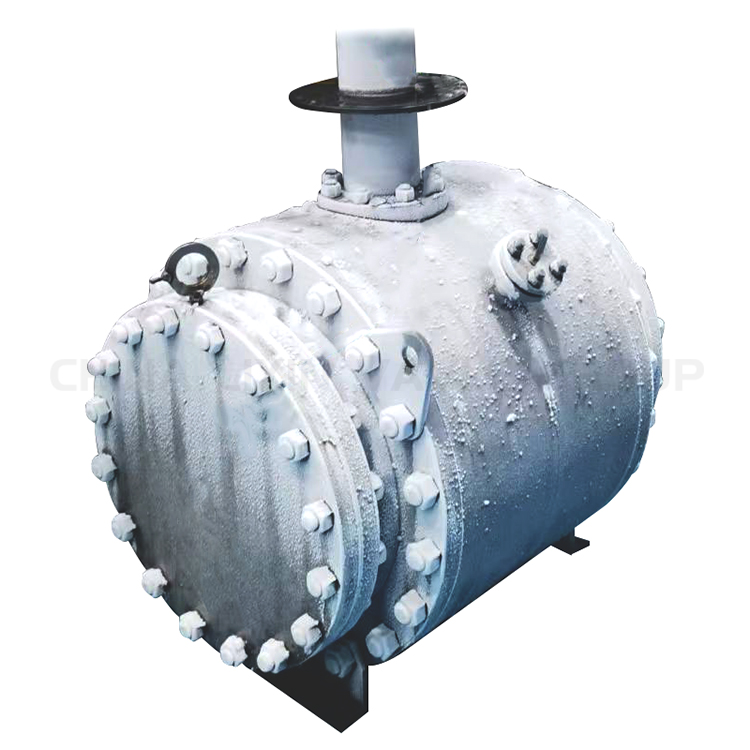

Cryogenic Ball Valve

Lixin Cryogenic Ball Valve are produced by the most advanced technology so it can suitable for service of working temperature down to －196℃, such as LNG, LPG, and air separation industry.

Main Features :

Lixin Cryogenic Ball Valve used the material it have good adaptability and stable performance in a low temperature,which also can keep valves with excellent sealing performance in ultra-low temperature.The seat and pressure relief structure can be adapt varies working condition.

Design Features :

Floating and trunnion are optional

Bonnet Extension is Optional ;

Low fugitive emission control;

Lip seal;

Cavity pressure self relief;

Convenience to on-line maintenance ;

Valve Brand：Lixin
Valve Structure：Ball Valve
Valve Material：SS
Nominal Diameter：1/2″～24″
Valve End Connection：RF, RTJ, BW
Valve Pressure range：Class150～2500
Working temperature：-196℃～+280℃
MOQ：Negotiation
Operation：Wrench, Worm gear,Electric,Pneumatic, etc.
Certificate：BS6364、GB/T 24925
