Introduction

When you throttle a fluid through a control valve at a large pressure differential, two problems show up fast: cavitation and noise. Both destroy trim, shake piping, and quietly drain your maintenance budget. A cage guided control valve is the industry’s standard answer for these duties because its cage—not the stem—absorbs the energy of the high pressure drop and keeps the plug stable. In this guide we explain what the design is, why it suppresses cavitation, which trim options exist, and how to decide whether your process needs one.

What Is a Cage-Guided Control Valve?

What is a cage guided control valve? It is a globe-style control valve where the plug is guided and supported by a stationary internal cylinder—the cage (also called the seat ring or retainer)—rather than by the stem alone. The cage is a precision-machined sleeve with one or more rows of ports. As the actuator moves the plug, the plug slides inside the cage; the ports open or close in a controlled sequence, setting the flow area and therefore the flow coefficient (Cv). Because the plug is located by the cage, the stem only transmits force—it does not have to keep the plug centered against the process thrust. That single design choice is what lets the valve survive duties that would bend or vibrate a top-guided plug.

In a typical cage-guided globe control valve, the bonnet houses the stem and actuator connection, the body provides the pressure boundary, and the cage, plug, and seat form the trim. The trim is the only part that touches the throttling flow, so it is also the only part you normally need to harden or replace when the service is severe. Standard trims use 316 stainless or a hardened alloy; for erosive or cavitating duty you can specify trim materials such as 316 with Stellite, nitriding, Ni60, or tungsten-carbide overlays—the same options offered on production cage-guided globe valves rated for NPS 1-1/2”–16” and up to CLASS 600.

Understanding control valve trim types starts here: the cage is what makes the trim modular. You can swap a standard characterized cage for an anti-cavitation or low-noise cage without redesigning the whole valve, which is why the cage-guided platform is so flexible across process conditions.

How Does the Cage Handle High Pressure Drop?

When a control valve throttles a large differential pressure, most of that energy converts to kinetic energy in the restriction and then back to heat and pressure downstream. In a single-stage restriction—a simple globe or needle seat—the velocity spikes in one place and the local static pressure can fall below the liquid’s vapor pressure, which is exactly the condition that triggers cavitation. The cage-guided design spreads that energy conversion across the geometry of the ports instead of one sharp edge.

A high pressure drop control valve built on a cage uses either many small ports or a staged path so the pressure drops in several steps. Each step is modest, so the peak velocity stays lower and the local pressure between stages stays above the vapor pressure of the fluid. The plug is hydraulically balanced by the cage, which means the actuator sees a small, steady force instead of a large varying thrust—so you get stable control and a smaller actuator.

This is also where rangeability comes from. Because the cage ports can be shaped (characterized) to a linear or equal-percentage curve, a cage-guided globe valve can hold accurate control across a wide turndown; production units are commonly rated at 50:1 rangeability. That matters to your business because one valve covers more of your load range, reducing the temptation to run two valves in bypass just to stay inside their comfort zone.

Why High ΔP Causes Cavitation and Noise

Cavitation in control valves begins when the local static pressure in the throttling zone drops below the vapor pressure of the liquid, forming vapor bubbles. Downstream, where pressure recovers, those bubbles collapse violently against metal surfaces. The implosions pit the plug and cage, generate a characteristic crackling noise, and over time remove material—a failure mode that can destroy a trim in months. Flashing is the worse cousin: if the downstream pressure stays below vapor pressure, the bubbles do not re-collapse but persist as vapor, permanently cutting capacity and eroding surfaces.

Noise follows the same physics. As the jet velocity rises, turbulent eddies and bubble collapse produce broadband sound that scales roughly with the sixth power of velocity. A valve that is fine at 20% open can become deafening near the seat at full differential. Plants with strict occupational-noise or community limits cannot ignore this.

The engineering rule of thumb is the cavitation index σ (sigma). When σ falls below roughly 1.0–1.5 for a given trim, incipient cavitation begins; lower still, it becomes damaging. Multi-stage cage trim raises that threshold by keeping inter-stage pressure high, which is the core reason a cage-guided valve is specified for severe services. Sizing to ISA-75.01.01 and checking the recovered-pressure cavitation index is standard practice before you commit to a trim—do not size on inlet pressure alone.

Anti-Cavitation and Low-Noise Cage Trim Options

The value of the cage platform is that you choose the trim for the problem. The three workhorses are summarized below.

An anti cavitation control valve is simply a cage-guided valve fitted with a multi-stage, tortuous-path cage. The fluid snakes through several pressure-reducing stages; because no single stage sees a large drop, local pressure never dips to vapor pressure and bubbles never form. An anti cavitation trim control valve variant adds hardened, often replaceable cages so that if solids are present the worn part is cheap to swap.

A low noise control valve uses a perforated cage with hundreds of small holes that break the main jet into many slow sub-jets. The energy is dissipated as harmless small eddies instead of a single screaming plume, typically pulling sound levels under 85–90 dBA at one meter. Many severe services need both benefits, so combination anti-cavitation and low-noise cages exist.

If you are comparing control valve trim types for a new project, start from the worst condition in your operating envelope—maximum ΔP, minimum downstream pressure, and any solids or flashing—then match the cage. Keep seat-leakage expectations realistic: cage-guided globe valves are routinely built to ANSI/FCI 70-2 (formerly ANSI B16.104) Class IV, V, or VI, so tight shutoff and severe throttling are not mutually exclusive.

When Should You Specify a Cage-Guided Valve? (Checklist)

If you are still deciding between a cage-guided and a simpler globe or rotary valve, use this checklist. Each row is a condition that pushes you toward the cage platform.

You can also run the quick self-check below before you shortlist.

Step 1 — Is your pressure drop severe?

If outlet pressure is less than about 60–70% of inlet pressure, or your cavitation index σ is below ~1.5, a single-stage valve will cavitate. Move to Step 2.

Step 2 — What is your binding limit: damage or noise?

If trim pitting is the worry, specify a multi-stage anti-cavitation cage. If a plant noise limit is the worry, specify a low-noise perforated cage. For both, choose a combination cage.

Step 3 — Do you need tight shutoff too?

Cage-guided globe valves reach ANSI/FCI 70-2 Class VI, so you usually do not have to trade shutoff for rangeability. Confirm the seat-leakage class with your supplier.

A single-seat globe control valve is the right call when your ΔP is modest, the fluid is clean, and you want the lowest first cost—but the moment pressure drop, noise, or cavitation enters the picture, the cage-guided design earns its keep. Rotary valves (ball, butterfly) win on cost and size for on/off and some modulating duties, yet they rarely match a cage-guided globe for stable throttling across a 50:1 range under severe ΔP. For a broader view of where each body style fits, see our globe valve vs ball valve comparison.

Match the cage trim to your exact service Send us your worst-case ΔP, fluid, temperature, and noise limit. Our application engineers will confirm the cage stage count, trim material, and seat-leakage class for your cage-guided valve. Explore cage-guided globe valves

FAQs

What is a cage guided control valve and how is it different from a top-guided valve?

In a cage-guided valve the plug is located by a stationary cage, not by the stem. A top-guided (post-guided) valve relies on the stem and a short guide near the top, so at high ΔP the plug can tilt and vibrate. The cage-guided layout gives far better stability and is the standard choice for severe throttling duties where a single-stage seat would cavitate.

How does a cage-guided valve handle a high pressure drop without damage?

It spreads the pressure reduction across many ports or stages instead of one sharp seat. Local velocity stays lower and inter-stage pressure stays above vapor pressure, so cavitation and the resulting pitting are avoided. The balanced plug also keeps actuator force small and steady, which protects the actuator and improves control accuracy.

What is cavitation in control valves, and how does the cage prevent it?

Cavitation is the formation and violent collapse of vapor bubbles when local pressure drops below vapor pressure and then recovers downstream. A multi-stage cage keeps each stage’s pressure drop small, so the fluid never reaches the low pressure needed to form bubbles in the first place. This is why a cage-guided valve is specified for pump letdowns and other high-recovery services.

When should I choose an anti-cavitation trim versus a low-noise trim?

Choose anti-cavitation trim when the risk is bubble collapse damaging the trim or piping. Choose low-noise (perforated) trim when the binding constraint is a plant noise limit. For many severe services, combination cages provide both—select on your actual limiting condition rather than on a generic model number.

Can a cage-guided control valve meet tight shutoff and wide range at the same time?

Yes. Cage-guided globe valves are commonly built to ANSI/FCI 70-2 Class IV, V, or VI shutoff while holding 50:1 rangeability, because the characterized cage sets the flow curve independently of the sealing surfaces. You do not have to trade one for the other.

What data should I send my supplier to select the right cage trim?

Send the fluid and its properties, maximum and minimum flow, upstream and downstream pressure (not just ΔP), temperature, any flashing or solids, and your noise limit. That envelope lets the supplier confirm the cavitation index σ and pick the cage stage count and trim material instead of guessing from a nameplate.

Conclusion

Specifying the right trim is cheaper than replacing a destroyed valve six months after startup. If your service combines a high pressure drop, flashing risk, or strict noise limits, a cage guided control valve should be on your shortlist—and the anti-cavitation or low-noise cage trim should be part of the conversation with your supplier. Use the checklist above, then compare real datasheets before you buy. LIXIN’s cage-guided globe control valve line covers NPS 1-1/2”–16” with rangeability up to 50:1; explore the full control valve range or talk to our application engineers to confirm the trim for your fluid.

Need a cage-guided valve spec for your plant? Browse LIXIN’s control valve range or send your operating envelope for a trim recommendation from our engineers. Browse the control valve range

Introduction

When your business moves steam, toxic chemicals, or volatile process fluids, a single stem leak is never just a small drip. It is lost product, a potential compliance violation, a safety incident, and unplanned downtime waiting to happen. A bellow seal valve removes that risk at the source by replacing the traditional stem packing with a welded metal bellows that keeps the process media fully enclosed. In this guide we explain why plants specify bellow seal valves for steam and toxic media, how the design works, where packed valves fail, and how to choose the right configuration for your duty conditions.

What Is a Bellow Seal Valve?

A bellow seal valve is a specialized on/off or throttling valve — most often built as a globe or gate valve — that replaces the conventional gland packing around the stem with a corrugated metal bellows. The bellows is welded at one end to the valve stem and at the other end to the bonnet, forming a fully sealed, flexible envelope around the stem. As you open and close the valve, the bellows expands and compresses with the stem’s travel, so the stem never makes direct contact with the atmosphere. The result is a secondary containment boundary that exists as part of the valve itself, not as a seal you hope keeps holding.

For your business, this design difference is not a minor engineering detail — it is the difference between a valve that will eventually leak because packing degrades, dries out, or loosens over time, and a valve that stays mechanically sealed for the working life of the bellows. That is the core reason bellow seal globe valve and gate versions are specified wherever fugitive emissions carry regulatory, safety, or financial consequences.

Most bellow seal valves also include a secondary sealing system — typically conventional gland packing positioned above the bellows. This backup is not the primary seal; it is a safety net. If the bellows were ever to fatigue after years of cyclic service, the secondary packing prevents an uncontrolled release and gives your maintenance team time to plan a repair instead of facing an emergency shutdown. That layered design is exactly why operators trust bellow seal valves for continuous, high-cycle applications.

Why Do Packed Valves Leak?

Gland packing works by compressing a soft fibrous or graphite ring set around the stem. To seal, the packing must stay compressed — but compression creates friction, which means the packing also wears every time the stem moves. Plant crews periodically tighten the gland to compensate, yet tightening increases friction and wear, accelerating the very cycle it was meant to fix. Over months and years the packing loses resilience, cracks, or compresses permanently, and stem leakage begins.

The problem is amplified by duty conditions. On steam lines, thermal cycling bakes the lubricants out of the packing, hardens it, and opens micro-channels that let vapor escape. For toxic or volatile media, even a slow weep is unacceptable because the leaked substance is hazardous to people and the environment, and it can trigger reporting obligations. This is precisely why bellow seal valves are used in services where stem leakage is not an option — the bellows removes the packing-to-atmosphere path entirely, so there is no soft seal to harden, crack, or weep.

Why Use a Bellow Seal Valve for Steam?

Steam systems run hot and cycle thermally, which is the worst case for any soft stem seal. On saturated or superheated steam lines, a packed valve’s gland packing is under constant thermal and mechanical stress that no amount of re-torquing fully removes. Bellow seal valves keep the stem sealed through those cycles because the metal bellows flexes rather than wears, maintaining containment while the valve operates through repeated heat-up and cool-down.

Temperature capability matters for your specification. Our bellow seal gate and globe valves are rated for continuous steam service — the WZ41H / WJ41H series is specified up to approximately 425 °C (797 °F) depending on body and trim material. For the pressure and temperature sizing math on steam duty, our high-pressure steam control valve specification guide walks through the calculations you need before release.

Thermal growth and condensate also favor the design. Gate and globe bodies handle thermal expansion better than soft-seated alternatives, and the full-bore gate version keeps pressure drop low on main steam isolation points. The payoff for your plant is fewer packing adjustments, no graphite dust in the area, and a measurable reduction in steam loss — which on a large site adds up to meaningful energy and water savings over a season.

Why Use It for Toxic and Volatile Media?

When the media is toxic, flammable, or simply too valuable to lose, every gram that escapes the stem is a problem. Bellow seal valves are the standard answer for chlorine, ammonia, phosgene, hydrogen, light hydrocarbons, and aggressive chemicals where a weep at the gland is never acceptable to your EHS team or your neighbors.

Fugitive emissions are measured and regulated, not assumed. EHS teams and auditors assess stem leakage under standards such as ISO 15848-1, and many plants set near-zero emission targets that a soft packed seal simply cannot demonstrate. A bellows gives you a mechanically sealed barrier you can document and trust. To see how leakage is actually measured and classified, read our practical guide to fugitive emission test standards for valves (ISO 15848-1).

Worker safety and community risk both improve when the stem is enclosed. Operators are not exposed during routine open/close cycles, and perimeter monitoring stays clean. For volatile organic compounds this also protects your facility from VOC reporting penalties that accumulate from dozens of small packing leaks across a unit. The business case is rarely about the valve price — it is about avoiding the incident, the fine, and the shutdown.

Spec the Right Bellow Seal Valve for Your Steam or Toxic Line Send us your line size, pressure, temperature, and media, and our engineering team will match the right bellow seal gate or globe valve to your duty. Browse Bellow Seal Valves

How to Specify a Bellow Seal Valve (Checklist)

Choosing the right valve is a specification exercise, not a catalogue pick. Walk through these steps with your process data before you request a quote:

1. Classify the media. Is the fluid toxic, flammable, or environmentally hazardous? If yes, a bellows is usually mandated by your own HSE rules, and a bellow sealed gate valve or globe version becomes the default rather than an upgrade.

2. Define the function. Need on/off isolation with a full-bore, low-pressure-drop path? Specify a gate configuration. Need throttling or precise flow regulation on a steam or chemical line? Specify a globe configuration.

3. Confirm pressure and temperature. Match the bellows rating to your maximum operating conditions, not just the nameplate. Review shell and seat limits against your worst-case transient.

4. Select the material. Choose Carbon Steel, Stainless Steel, Aluminum Bronze, or Duplex to suit the media parameters — for example nitric acid, acetic acid, or urea service each favors a different alloy.

5. Fix the end connection. Flanged to ANSI B16.5 or butt-weld; confirm bore and face-to-face dimensions against your pipeline standard.

6. Pin the standards. Specify design to API 600 / API 6D / DIN 3356, with pressure-shell and seat testing to API 598 / DIN 3230 so the deliverable is auditable.

7. Specify stem and trim. A nitrided and tempered stem lowers friction torque and prevents mechanical binding, while Co-based cemented carbide hardfacing on the seating surfaces resists wear, scratching, and thermal corrosion.

8. Choose actuation. Manual, gear, electric, pneumatic, or hydraulic — match the operator to your access and automation plan.

If you are weighing a piston valve against a bellows design for your line, our piston valve vs bellow seal valve comparison breaks down the trade-offs so you can match the right valve to your application.

Which Bellow Seal Valve Should You Specify? (Quick Self-Check)

Use this quick decision aid to narrow your selection before you talk to engineering:

Do you need on/off isolation or flow control?

For isolation with a full-bore, low-pressure-drop path, specify a bellow seal gate valve. For throttling or precise regulation, specify a bellow seal globe valve.

Is the media toxic, flammable, or a VOC?

If yes, a bellows is the right call for stem containment — it removes the packing-to-atmosphere path that drives fugitive emission readings under ISO 15848-1.

What temperature are you running?

Up to roughly 425 °C steam duty fits the WZ41H / WJ41H series. Above that, discuss trim and body material with our engineering team before release.

Not sure which valve type fits your line?

Send your line size, pressure, temperature, and media to our team and we will return a matched specification — no obligation.

FAQs

What is the difference between a bellow seal valve and a standard packed valve?

A packed valve seals the stem with compressible soft rings that wear with every stroke and eventually leak; a bellow seal valve replaces that packing with a welded metal bellows that forms a permanent, flexible barrier between the stem and the atmosphere. The bellows has no wearing soft seal at the stem, so the leak path to atmosphere is mechanically eliminated for the working life of the bellows, with conventional packing retained only as a secondary backup.

Can a bellow seal valve handle high-temperature steam?

Yes. Because the sealing element is a metal bellows rather than a soft gland pack, it tolerates the thermal cycling of steam service without hardening or cracking. Bellow seal gate and globe valves in the WZ41H / WJ41H series are specified for continuous steam duty up to approximately 425 °C (797 °F) depending on body and trim material. Always confirm the exact rating against your maximum operating temperature before release.

What is the typical service life of a metal bellows?

Service life is driven by cycle count and temperature rather than calendar age. A properly specified bellows is designed for thousands to tens of thousands of open/close cycles; fatigue from repeated flexing is the primary failure mode, not gradual weeping. The secondary packing above the bellows acts as a safety net, so even in the rare event of bellows fatigue your plant gets a controlled, planned repair window instead of an emergency release.

Which standard governs fugitive emissions for bellow seal valves?

Stem leakage and classification are addressed by ISO 15848-1, which is the reference most EHS and audit teams use. Design and pressure-integrity expectations commonly follow API 600 / DIN 3356, while seat and shell tightness are verified to API 598 / DIN 3230 during factory acceptance. Specifying these standards up front gives you documented, auditable containment rather than an assumption.

Should I choose a bellow seal gate valve or a bellow seal globe valve?

It depends on the function. Choose a gate configuration for on/off isolation where you want a full-bore, low-pressure-drop shutoff — typical at main steam and pipeline isolation points. Choose a globe configuration when you need throttling or precise flow regulation, because the globe body is built for controlled modulation. Both share the same bellows stem seal and the same API / DIN standards; the difference is flow path and duty.

Is a bellow seal valve worth the higher upfront cost?

In hazardous service, almost always yes. The purchase premium is small next to the total cost of ownership: eliminated lost product, fewer packing adjustments and repacking shutdowns, avoided environmental reporting penalties, and reduced safety incident risk. On toxic or volatile lines the question is rarely “can we afford a bellow seal valve” and more often “can we afford a packing leak we cannot see.”

What happens if the bellows fails?

Bellows failure is rare and, by design, not catastrophic. The secondary packing seated above the bellows contains the stem immediately, preventing an uncontrolled release and giving your maintenance team time to schedule an overhaul. In many designs the bellows assembly is replaced during a planned shutdown, so the valve returns to full service without scrapping the body.

Conclusion

Choosing a bellow seal valve for steam and toxic media is a straightforward engineering decision once you frame it around leakage risk rather than first cost. The welded metal bellows eliminates the packing-to-atmosphere path that causes most fugitive emissions, while a secondary packing backup protects your plant if the bellows ever fatigues. Whether you need on/off isolation or precise throttling, specifying the right gate or globe configuration keeps your team, your neighbors, and your compliance record safe. Talk to our engineers about your duty conditions today.

Request a Quote from Lixin Valve Built to API 600 / DIN 3356 and pressure-tested to API 598 / DIN 3230, our bellow seal valves are engineered for demanding steam and toxic service. Email [email protected] or WhatsApp +86 18968776369. Contact Lixin Valve

Choosing the right valve seat leakage class is a quiet decision on a specification—and an expensive one to get wrong. When your process needs a control valve to hold tight, the leakage class on the data sheet decides how much fluid may pass once the plug is seated. This guide explains the six ANSI/FCI 70-2 leakage classes so you can match Class I through VI to your real operating duty. You will also see where soft and metal seats change the math, and when bubble-tight Class VI is worth the cost to your business.

What Are the 6 Leakage Classes?

The six leakage classes are defined in ANSI/FCI 70-2 (formerly ANSI B16.104), with IEC 60534-4 as the equivalent international reference. The standard applies to control valves—the modulating globe, rotary, and specialty designs your plant uses to throttle flow—not to on/off isolation valves. Its job is simple: it turns the vague instruction "the valve must close tight" into a measurable, contractually enforceable acceptance test, with a defined test medium, test pressure, and maximum allowable leakage for each class.

For Classes II through IV, the allowable leakage is expressed as a percentage of the valve's rated capacity (its Cv at full rated travel). That means the permissible leak scales with valve size and trim, so a large Class IV valve is allowed more absolute leakage than a small one. Classes V and VI break that pattern: their limits are fixed volumes based on port diameter and—for Class V—actual differential pressure. Understanding that shift is the key to reading a data sheet correctly.

In plain terms, the ladder runs from "no test at all" (Class I) to "bubble-tight by measurement" (Class VI). Class II is a generic industrial promise that the valve closes; Class III tightens the metal seating; Class IV is the workhorse for metal-seated control valves; Class V is a precision water test at real shutoff pressure; and Class VI is the soft-seat bubble test. The classes are not a simple decimal scale—Class V and VI use completely different units and test pressures, so Class VI is not automatically tighter than Class V at every size.

Soft Seat vs Metal Seat — Which Class?

The seat material is what actually determines which leakage class your valve can reach. A metal seat leakage class (Classes II through V) relies on precisely machined and often lapped metal-to-metal surfaces. The plug and seat are both metal, so the valve survives high temperature, abrasive media, and fire-safe duty—but it can only approach, never quite reach, a perfect seal. Class IV is the normal result for a well-made metal-seated control valve, while Class V demands extra lapping, higher seat load, and a strong actuator to hold the surfaces together at full differential pressure.

A soft seat leakage class, by contrast, uses a resilient insert—PTFE, EPDM, FKM, or PEEK—that deforms slightly under closing force and conforms to the metal counterface. That compliance closes the micro-gaps a hard metal pair cannot, which is why soft seat leakage class performance is what earns a valve its Class VI bubble-tight rating. The trade is temperature and chemical limits: a polymer seat loses its shape above roughly 200 °C (lower for some elastomers), and aggressive media can swell or embrittle it. If you want to compare seat materials across a specific product family, our breakdown of metal-seated ball valves shows where a lapped metal face beats a soft polymer and where it does not.

In practice the choice is rarely "which is better" and almost always "which fits the duty." For hot, dirty, or fire-risk service you accept a small metal-seat seepage and specify Class IV or V. For clean, moderate-temperature service where tight shutoff matters, a soft-seated ball valve or soft-seated control valve delivers Class VI at a lower cost than chasing the same result in metal. Your business should pick the seat for the fluid first, then read the resulting class off the standard.



When Do You Need Class VI Bubble-Tight?

You reach for a leakage class VI rating when even a whisper of pass-through is unacceptable. The classic cases are gas isolation, hazardous or toxic fluids, and valuable products you cannot afford to lose through the seat. A single-seat globe control valve with a PTFE insert, or a soft-seated ball or butterfly valve, is the textbook way to get there: the resilient seat fills the gaps, and the factory bubble test confirms it against the FCI 70-2 table. Clean water, HVAC, and fire-protection loops also lean on Class VI because the fluid is clean enough that the soft seat will not erode.

Two cautions protect your specification from an expensive mistake. First, Class VI is measured, not absolute: a 6-inch valve may legally pass 27 bubbles per minute and an 8-inch valve 45. That is invisible on a roaring line but is not zero, so do not write "zero leakage" on the purchase order. Second, the Class VI test pressure is only 50 psig (or the rated differential, whichever is lower). If your line runs at 500 psig, a valve that passed bubble-tight at 50 psig can still weep in service—because the soft seat may not maintain contact at the higher load. For genuinely high-pressure tight shutoff, a metal-seated Class V design tested at the real ΔP is often the safer call.

When Is Class IV Enough?

For most process plants, a leakage class IV metal-seated valve is more than enough—and asking for more would only add cost and fragility. Class IV allows 0.01% of rated capacity at a modest 45–60 psig test, which a standard metal-seated globe or rotary control valve achieves reliably on the production line. Steam pressure control is the textbook example: a globe control valve in steam service routinely meets Class IV, holds up to temperature, and shrugs off the cycling that would chew up a soft seat. Our guide to high-pressure steam control valve specifications walks through how Class IV trim is selected for that duty.

Class IV is also the right answer whenever the valve sits in a line that already has separate block valves upstream and downstream. In that arrangement the control valve modulates flow most of its life and only needs to "roughly close"; positive isolation is handled by the block valves during maintenance or emergency. Specifying Class VI there buys you nothing but a softer, temperature-limited seat. Reserve the tighter classes for the moments when the closed control valve itself is the only barrier between your process and a leak.

Need a control valve matched to the right leakage class? Share your fluid, pressure, and shutoff duty, and our engineering team will size the seat and actuator for the acceptance test your application actually needs. Explore Lixin Control Valves

How Is Leakage Tested?

A seat leakage test follows a repeatable routine so that "Class IV" means the same thing in every factory. The valve is placed fully closed, the test medium is connected to the upstream side, and the specified pressure differential is applied and allowed to stabilize. For Classes II, III, and IV the medium is air or water at 45–60 psig, and the leakage is measured downstream over a set interval. Class V switches to water at the actual maximum service differential pressure, which is why it is the honest choice for high-pressure duty. The actuator must deliver its full rated closing thrust during the test—a detail that quietly verifies valve-and-actuator matching.

Class VI uses the famous bubble test. Air or nitrogen at 50 psig is fed through the closed seat, and the escaping gas is collected in a calibrated tube submerged under water; the bubbles per minute are counted against the port-diameter table. The result is reported as a bubble count, not a volume, which is exactly why people call it "bubble-tight." The discipline shares its philosophy with adjacent standards work—if fugitive emissions matter in your plant, our practical guide to fugitive emission test standards explains the related test thinking for stem sealing.



FAQs

What is a valve seat leakage class?

A valve seat leakage class is a standardized rating—Classes I through VI under ANSI/FCI 70-2—that defines the maximum fluid allowed to pass through a fully closed control valve, plus the required test medium and test pressure. It converts the requirement "the valve must shut off" into a measurable, contractually enforceable number that both you and the manufacturer can verify at factory acceptance.

Is Class VI leakage really zero leakage?

No. Class VI is "bubble-tight" by test, not zero. FCI 70-2 permits a specified bubble count per minute that rises with port diameter: 1 bubble/min at 1 inch, 27 at 6 inches, and 45 at 8 inches. For genuinely zero pass-through you need a separate block valve or a special metal-seated design, not a standard Class VI soft seat.

What is the difference between Class IV and Class V?

Both are metal-seated. Class IV allows 0.01% of rated capacity at a 45–60 psig test, while Class V allows 5 × 10ₙ mL/min per inch of port per psi of actual service differential, tested with water at the real shutoff pressure. Class V is therefore the stricter choice for high-pressure, long-closed duty where the valve must hold against a large ΔP for extended periods.

Can a metal-seated valve reach Class VI?

In practice, FCI 70-2 Class VI is defined for resilient (soft) seats such as PTFE, EPDM, FKM, or PEEK. A metal-seated valve can approach bubble-tight only with extensive lapping and special geometry, so for a documented Class VI you normally specify a soft seat. Treat any "metal-seated Class VI" claim with care and ask for the actual test method.

Does FCI 70-2 apply to isolation valves like gate or ball valves?

No. FCI 70-2 covers modulating control valves only. Isolation and block valves are tested to API 598 (US) or ISO 5208 / EN 12266-1 (international), which use different graded or pass/fail rates. Writing a control-valve leakage class on an isolation valve creates a false sense of security because the test pressure is far below line pressure.

Should I write FCI 70-2 or ANSI B16.104 on the data sheet?

They are the same standard: ANSI B16.104 was the original name and was later published as ANSI/FCI 70-2 (current edition ANSI/FCI 70-2-2006). Writing "ANSI/FCI 70-2" is the current, unambiguous choice, and IEC 60534-4 is the equivalent international reference your overseas suppliers will recognize.

Conclusion

Specifying a valve seat leakage class is not about picking the tightest number—it is about matching the shutoff acceptance test to your fluid, pressure, and risk. A metal-seated control valve at Class IV is the workhorse of process plants, while a soft-seated design earns its bubble-tight leakage class VI rating in gas, clean-water, and hazardous-duty service. Keep in mind that Class VI is a measured bubble count rather than zero, and that FCI 70-2 defines control-valve shutoff, not isolation-valve integrity. Choose the class your process can justify, document it on the data sheet, and verify it at factory acceptance.

Specifying bubble-tight shutoff for your next project? Browse Lixin's soft-seated ball valves and control valves, or send your data sheet to our engineering team for a leakage-class recommendation tailored to your duty. Browse Ball Valves

Choosing the right pulp and paper valves is rarely as simple as picking a catalogue number. Your stock lines carry fibre, grit and chemical-laden slurry that destroy ordinary valves in months, while your white-water and additive loops demand tight, leak-free shutoff. In this guide we walk through the valve types you will actually specify across the mill — knife gate, slurry, ceramic, ball, butterfly, check and diaphragm — and explain where each one earns its place. By the end you will have a practical framework to cut unplanned downtime and protect your paper machine.

What Makes Pulp & Paper Service Hard on Valves?

Pulp and paper is one of the most punishing services you will ever specify valves for, and the reason is simple: almost nothing flowing through the plant is clean. Your stock lines move a fibre-rich, often grit-laden suspension that scrapes past every sealing surface, while your recovery and recausticizing loops carry abrasive lime mud, green liquor and white liquor that eat through ordinary trim in a single season. Add bleach, sodium hydroxide and a long list of process chemicals, and you have a combination of abrasion, corrosion and sticking fibres that defeats general-service valves fast.

Temperature and pressure swing with the process, too. Your digester and evaporator areas run hot and chemical, your paper machine wet end demands reliable, low-maintenance shutoff on white water and dilute stock, and your pump sets need protection from backflow and water hammer. When a valve seizes or leaks on a continuous line, your business loses production minutes that quickly turn into tonnes of lost output. That is why the valve list for a pulp and paper plant is built around a small set of types chosen for exactly these conditions — which is what the rest of this guide covers.

Before you read the type-by-type breakdown, keep one rule in mind: match the valve to the media, not to the line size. A large, cheap butterfly valve is perfect on clean white water but will pack with fibre on thick stock; a knife gate valve shrugs off fibre but is the wrong choice for a tight, bubble-tight chemical dose. Getting that match right is the single biggest lever on valve life in your mill, and it is the lens we use for every section below.

Knife Gate Valve — For Stock, Sludge and Fibrous Flow

When your line moves thick stock, sludge, reject flow or anything stringy, the knife gate valves are the workhorses you will reach for first. Its single, sharpened gate slides straight down through the flow and shears fibre and scale on the way, so it closes cleanly where a wedge gate would jam. Built to the MSS SP-81 standard that defines knife gate valves, it gives you a full-bore, unobstructed path with very little resistance to the sluggish, high-solid suspensions typical of a pulp mill.

You will see knife gates across the pulper, thick-stock and bleach-prep areas, and in many slurry and tailing lines where debris would destroy a tighter-sealing valve. If you want to see how broadly this design is applied beyond paper, our breakdown of knife gate valve applications across industries shows the same logic at work in mining, power and wastewater. The takeaway for your plant is consistency: standardise on one knife gate style so spares and actuators stay interchangeable across the mill.

Size and line it for the media, not just the pipe. Rubber- or polyurethane-lined bodies resist the abrasion and stickiness of stock, while a raised or replaceable seat keeps shutoff acceptable even after the gate has worn. Fit a pneumatic or electric actuator where you need remote isolation, and specify a bonnet or fully-lugged body where you must hold full line pressure from one side only.

Slurry and Ceramic Valves — For Abrasive Stock and Coatings

Where the suspension turns genuinely abrasive — coating clays, filler, lime mud, sand-laden reject — a standard knife gate starts to lose its edge, and that is where a purpose-built slurry valve built for pulp service earns its keep. These valves use wear-resistant trim, hardened or lined passages and a seating geometry that stays tight even after thousands of abrasive cycles, so you get reliable on/off control on the dirtiest loops in the mill without monthly changeouts.

For the most aggressive services — recausticizing, green and white liquor, ash and grit — step up to ceramic-lined valves. An alumina or zirconia ceramic trim shrugs off erosion that would chew through stainless in weeks, and because ceramic is also chemically inert you get corrosion resistance on the same surface that fights abrasion. In a pulp and paper plant this is the difference between a valve that lasts a campaign and one that fails mid-run.

Choose the lining by what you are moving. Rubber lining handles moderate abrasion and gives a soft, tight seal; polyurethane lining stretches service life on coarser, more energetic slurries; ceramic takes the extreme end. Match trim hardness to the particle load and you protect both the valve and the downstream pump, screen and cleaner — which is where most unplanned pulp-mill stops actually begin.

Ball and Butterfly Valves — For Clean and White-Water Service

Once the flow is clean — fresh water, filtered white water, mild chemicals and additive loops — you can drop the heavy knife gate in favour of tighter, cheaper, lower-torque valves. This is where ball and butterfly valves take over across the clean side of the mill, and where you finally get bubble-tight shutoff without paying for abrasion-resistant trim you do not need.

Stainless 316 ball valves for clean water and chemicals; large butterfly valves for white-water and low-pressure headers

For chemical addition, clean-water sampling and instrument taps, a Stainless 316 (ASTM A351 CF8M) ball valve gives you bubble-tight shutoff and the corrosion resistance to survive bleach, alkali and sizing additives. It is compact, fast-acting and easy to automate, which is exactly what your process control loops need. On clean utility water and low-pressure additive lines a three-piece or flanged ball valve also services in place, so your maintenance crew swaps seats without cutting the pipe.

PTFE or rubber seats give chemical resistance

The seat, not the body, is what meets your chemicals, so specify PTFE or reinforced PTFE where you handle aggressive media and soft rubber where you only need a tight seal on water. PTFE seats hold up against a wide pH range and keep torque low; rubber seats are cheaper and fine for neutral white water. Pick the seat to the fluid and the body to the pressure, and these valves will outlast the line around them on the clean side of the plant.

For the big, low-pressure headers — fresh water, white-water return, effluent and fire-water — a large butterfly valve is the economical choice. It is light, needs little actuator effort and fits tight spaces, and on a paper machine white-water system it gives you the bore you need without the weight and cost of a full-bore ball valve. Use a high-performance or lined butterfly where the media is borderline, and a concentric design for clean, ambient water.

Check and Diaphragm Valves — For Pumps and Chemical Dosing

Check valves protect pump discharge; lined diaphragm valves dose bleach and NaOH safely

Every pump set in your plant needs a check valve on the discharge to stop backflow when the unit trips, and on a paper machine that protection is what prevents water hammer from slamming the line and the machine. A swing or lift check valve sized for your flow keeps the pump primed and the system safe. For chemical dosing — bleach (sodium hypochlorite), NaOH, alum, retention aid — a lined diaphragm valve isolates the aggressive media from the bonnet and stem, so the only wetted parts are the body lining and the diaphragm itself.

Size check valves for low pressure drop to avoid water hammer on the paper machine

Water hammer is the silent killer of pump discharge valves and, by extension, of paper-machine reliability. Size your check valve for a low pressure drop and a gentle closing characteristic — a slow-closing or spring-assisted design — so that when a pump stops the column of water does not rebound and shock the line. On the paper machine wet end especially, that choice protects seals, gauges and the machine itself, and it is far cheaper than the downtime a burst header costs your business.

Which Valve for Which Service?

Use this quick self-check to narrow down the valve types for pulp and paper that fit each loop in your mill. Open each step, answer it for your own line, and you will land on the right family before you open a quote.

Step 1 — What is actually flowing through the line?

Fibrous stock, sludge or reject → knife gate valve. Abrasive slurry, clay or filler → slurry valve or ceramic-lined valve. Clean water or neutral chemical → ball or butterfly valve. Pump discharge → check valve. Aggressive dosing chemical → lined diaphragm valve.

Step 2 — Is the media abrasive or corrosive?

If it scours trim, move from rubber-lined to polyurethane-lined, then to ceramic as the load rises. If it attacks metal chemically, specify 316 stainless or a PTFE-lined seat. Match hardness and inertness to the worst case you expect, not the average.

Step 3 — Do you need tight shutoff or just isolation?

Bubble-tight chemical and white-water duty → ball or PTFE-seated butterfly. Slurry and stock isolation where a soft seal is impossible → knife gate or slurry valve. Never spec a knife gate where the process demands zero leakage on a clean line.

Step 4 — What protects the pump and the machine?

Every pumped line gets a check valve sized for low pressure drop. On the paper machine wet end, favour a slow-closing or spring-assisted check to avoid water hammer. That single choice protects more downstream equipment than any upgrade to the valve body.

Build your pulp & paper valve list Send us your line media, pressure and temperature and get a matched valve recommendation for stock, slurry and white-water service. Request a pulp & paper valve quote

FAQs

What valve types are most common in a pulp and paper plant?

You will mostly specify knife gate valves for stock and sludge, slurry or ceramic valves for abrasive loops, ball and butterfly valves for clean water and chemicals, check valves on every pump discharge, and lined diaphragm valves for chemical dosing. The mix shifts with your process, but those seven families cover essentially every loop from the pulper to the paper machine wet end.

Why are knife gate valves used instead of gate valves in pulp mills?

A wedge gate valve jams on fibre and scale because its two wedging faces trap solids; a knife gate uses a single sharpened plate that slices through the stock as it closes, so it seats cleanly. On thick, high-solid pulp suspensions that self-clearing action is the reason knife gates, built to MSS SP-81, are the default rather than a standard gate valve.

Which valve handles abrasive slurry and coating clays best?

For coating clays and filler a purpose-built slurry valve with wear-resistant trim is the first choice, and for the most aggressive services — lime mud, green and white liquor — a ceramic-lined valve wins on life. Step up the lining (rubber → polyurethane → ceramic) as the particle load and corrosiveness rise.

Can I use a butterfly valve on thick stock?

Generally no. Butterfly valves pack with fibre on thick stock and lose shutoff, and the disc adds restriction to an already sluggish line. Reserve butterfly valves for clean white water, fresh water, effluent and fire-water headers where their compact size and low cost pay off. Use a knife gate or slurry valve on anything fibrous.

What valve is used for chemical dosing like bleach and NaOH?

Lined diaphragm valves are the standard for aggressive dosing because the diaphragm and body lining keep bleach and sodium hydroxide away from the stem and bonnet. Where the dosed stream is clean and only needs tight shutoff, a PTFE-seated ball valve is a simpler, automation-friendly alternative your engineers will thank you for.

How do I avoid water hammer on pump discharge in a paper mill?

Size the check valve for low pressure drop and choose a slow-closing or spring-assisted design so the water column cannot rebound when the pump trips. On the paper machine wet end this protects seals and gauges and prevents burst headers — far cheaper than the downtime a shock event causes your business.

Which standards apply to pulp and paper valves?

Knife gate valves are covered by MSS SP-81, general valve pressure-temperature ratings by ASME B16.34, and stainless bodies such as 316 by ASTM A351 (CF8M). Lining and seat materials are then approved against your chemical list (e.g. PTFE for broad pH resistance). Always confirm the specific standard on the data sheet for the valve you order.

Conclusion

Specifying valves for a pulp and paper plant is a balancing act between abrasion, corrosion and the sheer messiness of fibre-filled stock. When you match knife gate and slurry valves to your heavy lines, ceramic and lined valves to your abrasive loops, and ball, butterfly and check valves to your clean and pumped services, your plant runs longer between shutdowns. Your business protects output and avoids costly emergency changeouts. Use the selector above, compare the options in the table, and talk to a valve specialist about your exact pressure, temperature and media profile before you place the order.

Talk to a Lixin valve specialist Tell us about your pulp and paper lines and get a valve spec matched to your media, pressure and budget. Contact our valve team

If you are responsible for sourcing valves for an LNG terminal, a liquefaction facility, or an LNG bunkering project, the valves on your cryogenic lines carry more risk than almost any other component in your piping system. LNG is handled at approximately −162 °C, and at that temperature a valve that would perform perfectly in steam, oil, or water service can seize, leak, or fail its seat entirely. Choosing correctly is not only about avoiding downtime; it protects the people working around your storage tanks and keeps your operation compliant with the standards your customers and insurers expect you to meet.

This guide walks you through cryogenic valve selection in the order your procurement team should actually follow: what makes a valve truly cryogenic, the four valve types you will most often choose between, a five-step selection process you can reuse across projects, and the standards and tests—especially BS 6364—that prove a valve is fit for LNG duty before it ever reaches your site.

What Is a Cryogenic Valve?

A cryogenic valve is a valve engineered to seal and operate reliably at very low service temperatures—commonly defined as below −50 °C, with LNG service demanding continuous performance down to −162 °C and test verification at −196 °C in liquid nitrogen. The challenge at these temperatures is physical, not theoretical: metal bodies contract, polymer seats harden and lose resilience, and any moisture trapped in a component turns to ice. A standard industrial valve dropped into LNG service will usually leak past its seat, bind at the stem, or destroy its soft parts within the first thermal cycles.

Cryogenic valve design answers those problems with three signature features you should look for on every datasheet you review. First, an extended bonnet: a long bonnet and stem column that positions the stem packing and actuator 150–250 mm above the cold source, so the packing stays above freezing and does not fail, while the column also acts as a thermal barrier that limits heat input into the line. Second, materials with verified low-temperature toughness, typically austenitic stainless steels for the body and closure members, paired with seat materials such as PCTFE that keep their shape at cryogenic temperature. Third, meticulous cleanliness: every cryogenic valve must be fully degreased and moisture-free before shipment, because a single trace of oil or water becomes a hazard or a blockage at −162 °C.

When you compare suppliers, treat these three features as pass/fail criteria rather than marketing points. A manufacturer who can explain exactly how long its extended bonnet is, which seat polymer it uses and why, and how it documents cleanliness is showing you the evidence base you need for your own file.

What Are the 4 Common Cryogenic Valve Types?

Most LNG valve packages are built from four families, and each earns its place by doing a different job on your line. Understanding the split between them is the fastest way to narrow your shortlist before you ever request a quotation, because the costliest selection mistakes usually come from specifying a shutoff valve where the duty actually needs throttling, or the reverse.

The cryogenic ball valve is your workhorse for tight, fast isolation. Quarter-turn operation makes it easy to automate, and in larger sizes or higher pressure classes it is almost always trunnion mounted, so the seat seals carry the load instead of the ball. The cryogenic globe valve is the type you choose when your process needs controlled throttling, reliable vent and bleed duty, or a valve your maintenance team can reseat in the field. The cryogenic gate valve offers a full, unobstructed bore for lines where pressure drop must stay minimal and pigging is required, which is why it appears on transfer and loading lines, though it is strictly an open-shut valve and should never be used for throttling. Finally, the cryogenic check valve protects your pumps and compressors by preventing reverse flow when a line shuts down—unglamorous, but without it a single trip event can send product and surge pressure back into equipment that was never designed for it.

Valve Type	Best LNG Duty	Operation	Key Strength	Keep in Mind
Cryogenic ball valve	Isolation of storage tank, manifold and loading lines	Quarter-turn; wrench, gear box, electric or pneumatic	Tight shutoff and fast, automatable operation	Specify trunnion mounted for large sizes and higher classes
Cryogenic globe valve	Throttling, vent and bleed, frequent-operation points	Linear; handwheel, gear box or actuator	Excellent seat tightness and field re-seatability	Higher pressure drop; always install bonnet upright
Cryogenic gate valve	Full-bore on/off isolation on transfer and pigging lines	Multi-turn; handwheel or gear box	Unobstructed bore and minimal pressure drop	Not for throttling or frequent cycling
Cryogenic check valve	Reverse-flow protection at pumps and cold compressors	Self-acting	Protects rotating equipment automatically	Match cracking pressure to your line conditions

How to Choose a Cryogenic Valve in 5 Steps

Use the sequence below as a repeatable checklist for every LNG line you specify. Working in this order keeps the commercial conversation with your supplier efficient, because by the time you request a quote you already know the duty, the type, the materials and the tests you will accept.

Step 1: Define Your Operating Conditions Precisely

Start with the numbers, because every downstream decision depends on them. Confirm your minimum design temperature—remember that cooldown transients can briefly take a line below normal LNG temperature—along with operating and design pressure, line size, flow rate and allowable pressure drop. Also note where the valve sits: a valve on a tank internal line faces different thermal conditions from one on a loading arm. As a benchmark, established cryogenic valve suppliers commonly cover 1/2" to 24" nominal bore and Class 150 to Class 2500; if your duty falls inside that envelope, a standard cryogenic design will usually be available, while extremes of size or pressure call for early engineering discussion with the manufacturer.

Step 2: Match the Valve Type to the Duty

Now map each function on your line to one valve type from the table above. For pure isolation your default choice is a trunnion mounted cryogenic ball valve, and if you are weighing design options it helps to understand how floating vs trunnion mounted ball valves behave as pressure and bore increase—floating designs suit smaller, lower-pressure lines, while trunnion designs take the seat load off the ball and are the norm in LNG service. Where the process needs modulation, venting or frequent operation, choose a cryogenic globe valve, and reserve cryogenic gate valves for the full-bore, open-shut lines where pigging or minimal pressure drop matters. Getting this mapping right at the drawing stage prevents the classic retrofit problem: a gate valve installed where operators keep trying to throttle, wearing seats and leaking long before their design life.

Step 3: Specify Materials and the Extended Bonnet

Materials decide whether the valve survives its first thermal cycle. For LNG, insist on an austenitic stainless steel body and closure members with documented impact toughness at service temperature, and pay particular attention to the soft parts: PTFE seats that work perfectly at ambient temperature lose resilience as temperatures fall, so for −162 °C service you should expect PCTFE or an equivalent cryogenic polymer in the seats and seals. The extended bonnet deserves equal attention—ask each supplier for the actual bonnet extension and confirm it keeps the packing above the frost line for your insulation thickness and orientation, because a bonnet that is buried in insulation or installed horizontally defeats the design. This is also the stage to agree on cleanliness and leakage containment requirements, and if your specification demands near-zero stem leakage, it is worth reading how bellow seal valve designs achieve zero-leakage sealing before you finalize that clause.

Step 4: Demand Evidence — Testing and Certification

A cryogenic valve is only as good as the tests it has passed, so make test evidence a contractual requirement rather than a brochure claim. At minimum, require ambient shell and seat testing to a recognized leakage standard, plus cryogenic testing to BS 6364 or an equivalent procedure, performed in liquid nitrogen at −196 °C with measured operating torques and seat leakage rates. Ask each shortlisted supplier for the actual test reports, not just certificates of conformity, and check that the certificate references match the valve marks on the nameplate. When you evaluate a cryogenic valve manufacturer or supplier, the ability to produce complete, traceable test documentation at −196 °C is one of the clearest signals that the product will behave in your plant the way the datasheet promises.

Step 5: Plan Installation, Operation and Maintenance Before You Buy

The best valve will still underperform if installation realities are left out of the specification. Decide early how each valve will be operated—manual wrench or handwheel for accessible points, and electric, pneumatic or hydraulic actuation for valves on tank roofs, elevated lines or emergency shutdown duties—and confirm the actuator and its accessories are also rated for cryogenic exposure. Plan the insulation and cold box details around the extended bonnet, specify installation orientation (globe and gate bonnets upright, within the angle the manufacturer permits), and make sure your team keeps post-weld cooldown procedures in mind when welding the valve into the line. Finally, think about the day after commissioning: spare seat and seal sets, documented re-torque values and a maintenance plan will decide your cost of ownership, and a good starting point is this guide to maintaining a cryogenic globe valve for long-term reliability.

Which Standards and Tests Prove Cryogenic Performance?

Standards exist to take guesswork out of your procurement file, and for LNG valves a small set covers most of what you need. BS 6364 is the reference most buyers reach for first: it defines how a valve is cooled down in liquid nitrogen to −196 °C, the operating and leakage checks performed at that temperature, and the acceptance criteria the valve must meet before it can be called fit for cryogenic service. Complementary standards fill in the rest of the picture—covering extended bonnet requirements, seat leakage classes, fugitive emissions and, where your project demands it, fire-safe design. The table below summarizes the set you are most likely to reference in an LNG valve specification.

Standard	What It Covers	Why It Matters for Your LNG Valves
BS 6364	Cryogenic testing of valves in liquid nitrogen at −196 °C: cool-down procedure, operating torque and seat leakage acceptance	The benchmark proof that a valve seals and operates at LNG temperature, not just on the test bench at ambient
MSS SP-134	Requirements for valves in cryogenic service, including extended bonnet configuration and testing practice	Defines the extended bonnet and design details your specification should cite
GB/T 24925	Chinese national standard for the technical condition and cryogenic testing of low-temperature shutoff valves	Commonly required when sourcing from Chinese manufacturers; Lixin Valve tests its cryogenic ball valves and globe valves to BS 6364 and GB/T 24925
ISO 5208 / API 598	Pressure testing of industrial valves: shell strength and seat leakage rates and classes	The ambient-temperature baseline every valve must pass before cryogenic testing adds meaning
ISO 15848-1	Fugitive emission performance of valve stem packing, classified by tightness class and test cycles	Methane is a potent greenhouse gas; tightness classes support your emissions and safety compliance file — see this guide to ISO 15848-1 fugitive emission testing
API 607 / ISO 10497 (where specified)	Fire-safe type testing of soft-seated quarter-turn valves	Required when your project HSE philosophy demands fire-safe containment on hydrocarbon lines

When you collect bids, ask every supplier to state explicitly which standards each valve is tested to and to attach the corresponding reports. If a quote for cryogenic service does not mention BS 6364 or an equivalent cryogenic test, treat the valve as unproven for LNG duty no matter how attractive the price is—retesting or replacing a valve after installation costs far more than the premium you pay for documented performance.

FAQs

What temperature counts as “cryogenic” for valve selection?

For valve engineering, cryogenic service generally begins at around −50 °C and certainly by −100 °C, while LNG service demands continuous operation at approximately −162 °C and verification testing at −196 °C. The distinction matters because material behavior changes progressively: carbon steels lose toughness well before LNG temperatures, and standard soft seals lose resilience as you approach −100 °C. If any part of your duty can drop below −50 °C—including cooldown transients—you should be specifying cryogenic construction for that valve.

Why do cryogenic valves have extended bonnets?

The extended bonnet creates a gas column between the cold media and the stem packing, keeping the packing, gland and actuator above freezing where they can function normally. Without that column, packing freezes, loses its seal and allows cold gas to escape, and the actuator or handle becomes unusable with ice. The bonnet also serves as thermal insulation between the atmosphere and the cryogenic line, and standards such as MSS SP-134 define the design details so the extension matches the insulation and installation orientation of your line.

Ball valve or globe valve for LNG service — which should you choose?

Choose by function, not by habit. If the line needs fast, tight, full-bore isolation—tank inlet and outlet, manifolds, loading arms—a cryogenic ball valve is normally the right answer because it closes in a quarter turn and seals tightly with low pressure drop. If the line needs throttling, frequent operation, vent or bleed duty, a cryogenic globe valve gives you precise control and seats your maintenance team can reseat in the field. Many LNG packages use both: ball valves for isolation and globe valves where control and containment matter most.

What seat material should you specify for −162 °C LNG?

For LNG duty, PCTFE is the seat material most engineers specify because it retains its shape, hardness and sealing performance at cryogenic temperature far better than PTFE, which becomes progressively less resilient as temperature falls. That said, PTFE-based compounds remain valid in less extreme cryogenic ranges, and some designs combine materials across seat, body and stem seals. The right question for your supplier is which polymer they use at your exact minimum design temperature and what test evidence backs that choice—reputable manufacturers will answer with a temperature rating and a BS 6364 report, not a general datasheet.

What is BS 6364, and do you really need it for LNG valves?

BS 6364 is the British Standard for cryogenic valve testing, and it defines the whole proof sequence: cooling the valve in liquid nitrogen to −196 °C, verifying that it operates and seals at that temperature, and recording the torques and leakage rates observed. For LNG service it is effectively the industry benchmark, and most project specifications require it or an equivalent such as GB/T 24925. If you skip it, you are buying a valve whose low-temperature performance is a claim rather than a measurement—rarely a risk worth taking on a line that handles methane at −162 °C.

Can you install a standard valve for LNG if you derate it?

No—derating pressure does not fix the problems that disable a standard valve at cryogenic temperature. At −162 °C the body material must have verified low-temperature toughness, the seat and stem seals must remain elastic, and the bonnet must be extended so the packing survives; a standard valve has none of these features, so it will leak or seize regardless of its pressure rating. The only acceptable route is a valve designed and tested for cryogenic service, with the documentation to prove it.

Conclusion

Choosing cryogenic valves for LNG comes down to a disciplined five-step process: define your operating conditions precisely, match each valve type to its duty, specify materials and an extended bonnet that survive −162 °C, demand BS 6364 or equivalent test evidence, and plan installation, operation and maintenance before the purchase order is signed. Apply that sequence line by line and you will end up with a valve package that passes commissioning the first time and stays tight for its design life.

Need Cryogenic Valves for Your LNG Project? Send Lixin Valve your operating temperature, pressure class and line size, and our engineers will recommend the right cryogenic valve configuration for your duty. Request a Quote

If you are specifying equipment for a hydrogen production plant, a refuelling station, or a pipeline conversion project, you have probably already been told the same thing by every supplier: "just use our standard valve." It is tempting, because a hydrogen valve looks almost identical to the valve you would buy for natural gas, nitrogen, or compressed air. Same body, same flanges, same handwheel. The difference is not visible on the outside — it is in the metallurgy, the sealing system, and the test regime, and it is the difference between a valve that runs reliably for years and one that becomes your plant's most expensive leak.

Hydrogen is the smallest, lightest, and one of the most reactive gases your piping system will ever carry. It embrittles certain steels, permeates through elastomers that would hold methane perfectly, ignites with roughly one-tenth of the energy needed to light natural gas, and burns with a flame that is almost invisible in daylight. None of these behaviours show up in a standard hydrocarbon valve data sheet, which is exactly why valves for hydrogen service are engineered — and tested — to a different set of rules.

This guide explains, in practical procurement terms, what makes hydrogen different, why ordinary valves fail in H2 service, which materials and valve types are actually safe to use, and the five steps we recommend before you sign any purchase order.



What Makes Hydrogen Different from Other Gases?

Before you can select a valve intelligently, you need to understand what your valve is actually fighting. Hydrogen is not simply "lighter methane" — it behaves in several ways that have no real equivalent in the hydrocarbon world. These properties are the reason dedicated hydrogen valve standards exist at all.

First, consider size and mobility. The hydrogen molecule is the smallest stable molecule in nature, with a molecular weight of just 2.016 g/mol and an effective kinetic diameter of about 0.29 nm. That means it migrates through clearances, thread interfaces, and polymer structures that would be completely tight against nitrogen or methane. A packing gland that leaks "a few bubbles per minute" on an air line can become a continuous hydrogen stream on an H2 line — and because hydrogen is odourless and its flame is nearly invisible in daylight, you may not notice it until a detector does.

Second, consider reactivity and ignition. Hydrogen burns in air across an unusually wide range — roughly 4% to 75% by volume — and its minimum ignition energy is around 0.02 mJ, roughly an order of magnitude lower than methane. Static electricity generated by a dry gas flow, or a spark from a non-intrinsically-safe accessory, is enough. Its flame also radiates very little heat, so a burning leak gives your operators almost no visual warning. Add hydrogen's negative Joule–Thomson behaviour at ambient temperature (it warms, rather than cools, on rapid depressurisation) and you have a gas that punishes every shortcut in your valve specification.

Third, consider pressure. Gaseous hydrogen is typically stored and dispensed at 350 bar for light-duty refuelling and 700 bar for heavy-duty applications, with compressor discharge and tube-trailer service even higher. That is far beyond the working pressure of most general-purpose industrial valves, and it multiplies every one of the effects above. The table below summarises the properties that directly drive your valve specification.

Property	Hydrogen (H2)	Natural Gas (CH4)	What It Means for Your Valve
Molecular weight	2.016 g/mol	16.04 g/mol	Escapes through micro-gaps that seal other gases
Density vs air	~1/14 of air	~0.55 of air	Rises and accumulates under roofs and canopies
Flammable range in air	~4% – 75% vol	~5% – 15% vol	Far wider window for a leak to become a fire
Minimum ignition energy	~0.02 mJ	~0.28 mJ	Static bonding / anti-static design becomes critical
Flame visibility	Nearly invisible in daylight	Visible luminous flame	Leak detection must be instrumental, not visual
Effect on metals	Hydrogen embrittlement of high-strength steels	Negligible	Material selection and hardness control are mandatory
Typical working pressure	350 – 700+ bar in refuelling service	Up to ~100 bar in distribution	Forged bodies and high-pressure ratings are the norm

Why Do Standard Valves Fail in Hydrogen Service?

When a conventional valve is put into hydrogen service without redesign, failures cluster into a small number of well-understood mechanisms. Knowing them helps you read a manufacturer's data sheet critically instead of accepting "suitable for hydrogen" at face value.

1. Stem leakage through conventional packing. Standard valves seal the stem with compressible packing rings that rely on controlled load and surface finish. Hydrogen's small molecule migrates through the packing-to-stem and packing-to-bonnet interfaces far more readily than air or methane, and the leak rate grows as packing relaxes with thermal cycling. For hydrogen service, you need a demonstrably low-leakage stem seal — which is why a bellow seal valve, with its welded metal bellows enclosing the stem, is so often the first choice for H2 and other high-consequence gases.

2. Seal and seat material incompatibility. Elastomers behave very differently in hydrogen. Some nitrile (NBR) compounds swell and lose their sealing force; unfilled PTFE has relatively high hydrogen permeability and suffers from cold flow under sustained load. At 350–700 bar, a soft seal that was marginal at 16 bar becomes a genuine reliability problem. Filled PTFE, PCTFE, PEEK, and high-grade FKM/FFKM compounds, or full metal-to-metal sealing, are the engineering answer — not a generic "PTFE seat" line item.

3. Hydrogen embrittlement of high-strength parts. Atomic hydrogen generated at the metal surface diffuses into the lattice of susceptible steels and reduces their ductility. High-strength bolting, springs, stems, and heat-affected zones near welds are the classic victims: the part can carry full pressure for months and then crack with no visible thinning. This is why hydrogen service puts strict limits on steel strength and hardness, and why heat treatment and material traceability matter more here than in almost any other service.

4. Galling and wear on stainless trim. Many hydrogen valves use austenitic stainless steel for cleanliness and corrosion resistance. The same family of alloys is prone to galling when mating stainless surfaces rub under load — ball-to-seat, stem-to-bushing, thread-on-thread. Without proper material pairing, surface treatment, and lubricant selection for hydrogen service, a valve that operated smoothly on the test bench can seize in the field within weeks.

5. Cavity overpressure and static build-up. In a trunnion or floating ball valve, gas trapped in the body cavity expands significantly as ambient temperature rises. In hydrogen service, an over-pressurised cavity has to be managed by design — through seat geometry or documented relief provisions — because a trapped-volume failure on an H2 line is not a maintenance nuisance, it is a safety event. For the same reason, positive bonding between ball, stem, and body (anti-static design) is expected, since hydrogen's ignition energy is so low that a static spark across a dry seat is a realistic ignition source.

6. Inadequate leak testing. A valve that passes a standard water or air shell test can still leak unacceptably in hydrogen. Because the molecule is so small, meaningful verification uses helium or hydrogen itself at service pressure with sensitive detection, and fugitive-emission testing to a recognised class. If your supplier cannot tell you the test gas, the pressure, and the acceptance criterion, you do not yet know what you are buying.

What Materials Are Safe for Hydrogen Valves?

Material selection is where hydrogen projects are won or lost. The good news is that the safe list is well established and not exotic; the discipline lies in applying it consistently to every pressure-retaining and sealing part, including fasteners and welds.

Austenitic stainless steels are the default body and trim choice. 316/316L stainless steel retains its ductility in hydrogen, resists corrosion from moisture traces in the gas, and welds predictably. For high-pressure hydrogen — refuelling stations, compressor discharge, tube trailers — forged 316L bodies with controlled hardness are the industry norm. Nickel alloys such as Inconel 625 and 718 are used where combined high pressure and temperature exceed what stainless can deliver. Low-alloy and carbon steels are not excluded: properly specified carbon steel is widely used in pipeline hydrogen service, provided strength and hardness are limited and weld procedures are qualified for hydrogen.

What to avoid is just as important. As a rule, avoid high-strength steels above roughly 950 MPa tensile strength (about 32 HRC), including many common 4140/4340-type bolting and stem materials in their high-hardness condition, and avoid hard electroplated coatings such as cadmium or electroless nickel on hydrogen-wetted parts. If your supplier's standard trim uses a high-hardness 17-4PH or coated 4140 stem, ask specifically whether that configuration has been qualified for hydrogen.

Soft materials must be chosen for permeability, not just chemical resistance. Glass- or carbon-filled PTFE, PCTFE, and PEEK hold their sealing force far better than unfilled PTFE at high pressure. Among elastomers, EPDM and FKM are widely used, with FFKM reserved for the most demanding combinations of pressure and temperature. NBR is generally the weakest performer in hydrogen and is worth challenging on any quotation. And if your project involves liquid hydrogen at −253 °C, your materials conversation changes completely — at that temperature you are dealing with cryogenic embrittlement, extended bonnets, and specialised testing, which is the same domain as LNG. A purpose-designed cryogenic ball valve with an extended bonnet is the configuration used in that temperature class.

Component	Generally Suitable	Use with Caution / Avoid
Body / bonnet	316/316L stainless; qualified carbon steel (hardness-limited); Inconel 625/718 for high pressure-temperature	High-strength low-alloy steels above ~950 MPa without qualification
Ball / disc / trim	316L; duplex grades; controlled-hardness 17-4PH with qualification	High-hardness tool steels; unqualified 17-4PH in H900 condition
Stem & bolting	316L work-hardened; A193 B8M Class 2 with hardness control	4140/4340 in high-hardness condition; cadmium or electroless-nickel plated parts
Soft seats & seals	Glass/carbon-filled PTFE, PCTFE, PEEK, UHMWPE, DEVLON	Unfilled PTFE at high pressure (permeation and cold flow)
Elastomer O-rings	EPDM, FKM, FFKM (grade-dependent)	NBR in high-pressure hydrogen; unverified compounds
Metal seals / bellows	316L bellows; metal-to-metal seats for severe service	Bellows made from susceptible high-strength alloys

How to Select a Hydrogen Valve in 5 Steps

The following five steps turn the theory above into a repeatable specification routine you can hand to your engineering team or use to challenge a quotation line by line.

Step 1 — Define the Service Envelope Precisely

Start by writing down, in numbers, exactly what the valve will see: gaseous or liquid hydrogen, purity class, minimum and maximum operating pressure, design pressure, ambient and process temperature range, and the number of operating cycles per year. Include transient conditions — rapid depressurisation, compressor start-up surges, and fire exposure — because these often size the valve rather than the steady-state case. Two hydrogen projects rarely share the same envelope: a 30 bar electrolyser outlet line and a 700 bar dispenser are both "hydrogen service" but demand completely different hardware.

Step 2 — Match the Valve Function to the Duty

Decide what the valve has to do before deciding what it is. On/off isolation, non-return protection, throttling, and instrument-level metering each point to a different valve family with different hydrogen considerations. A common and costly mistake is defaulting to a general-purpose isolation valve everywhere in the plant, then discovering that the check function, the tight-shutoff requirement, or the flow-control duty has been left to whatever happens to be installed.

Step 3 — Select Hydrogen-Compatible Materials

Work through the table in the previous section part by part: body, bonnet, ball or disc, stem, seats, seals, bolting, and coatings. Require material certificates (EN 10204 3.1 or equivalent) and hardness verification for pressure-retaining parts, and confirm that welding procedures and heat-affected-zone hardness are controlled to your project's hydrogen code. If liquid hydrogen is involved, add cryogenic qualification to the same list. This step is also where you should require cleanliness documentation — hydrogen components should be delivered degreased, dry, and capped, because hydrocarbon residues and moisture have no place in a hydrogen system.

Step 4 — Engineer the Sealing System for Near-Zero Leakage

Specify leakage explicitly at three interfaces: seat, stem, and body joints. For the stem, decide between advanced packing systems and a welded metal bellows, and ask for the test evidence. For seats, confirm the soft material grade or metal-seal design and its shutoff class. For fugitive emissions, reference a recognised test standard and leakage class rather than a marketing phrase — our separate guide to fugitive emission test standards for valves explains how those classes are structured and what the ratings actually mean. In hydrogen service, the leak rate you specify will largely determine the valve's price, and it is the one number you should never leave blank.

Step 5 — Lock the Standards, Testing, and Documentation

Finally, tie your purchase order to named standards for design, testing, and certification, and require the corresponding certificates with delivery. Hydrogen-specific rules such as ASME B31.12 for piping, and station-level requirements such as ISO 19880-1, sit on top of the familiar valve standards you already use — pipeline valves are still commonly designed and tested to API 6D ball valve requirements, for example, with hydrogen-specific additions. Ask for helium or hydrogen leak-test reports, material certificates, pressure test records, and, where applicable, fire-safe and low-emission certificates. A supplier who can produce this package without prompting is telling you something important about how they build valves.

Which Valve Types Suit Hydrogen?

Not every valve family earns its place in a hydrogen system. The table and notes below reflect what is most commonly specified across hydrogen production, distribution, and refuelling applications, and why.

Hydrogen Ball Valve

The hydrogen ball valve is the workhorse of gaseous hydrogen isolation. A full-bore ball gives you an uninterrupted flow path with minimal pressure drop — valuable where compressor efficiency matters — and a quarter-turn operation that suits automated skids. For high-pressure hydrogen, forged trunnion-mounted designs are preferred because the trunnions absorb the line-pressure load on the ball, keeping seat stress predictable and operating torque low. For buried or otherwise inaccessible pipeline sections, a fully welded ball valve removes the bolted flange joints entirely, eliminating external leak paths — a significant argument when the contained gas is hydrogen.

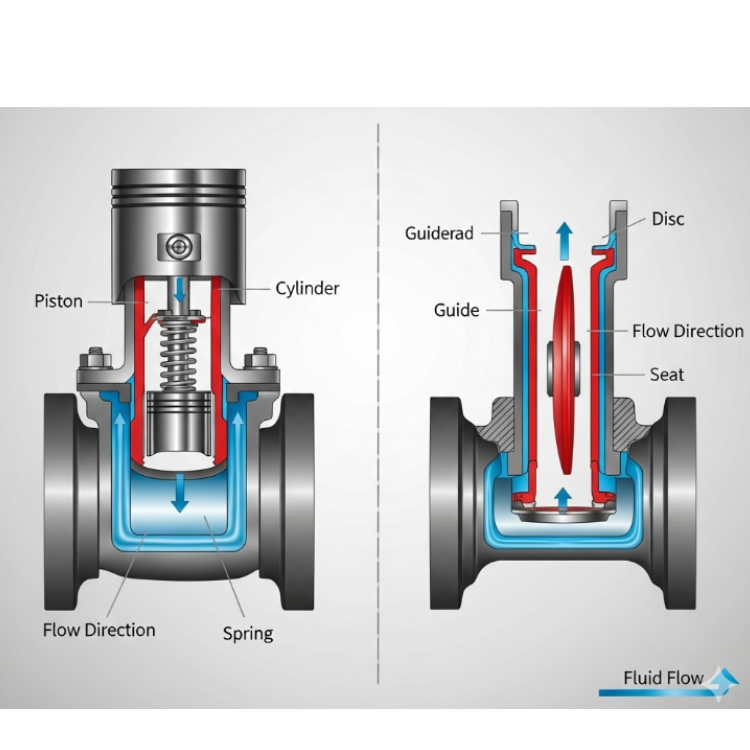

Hydrogen Check Valve

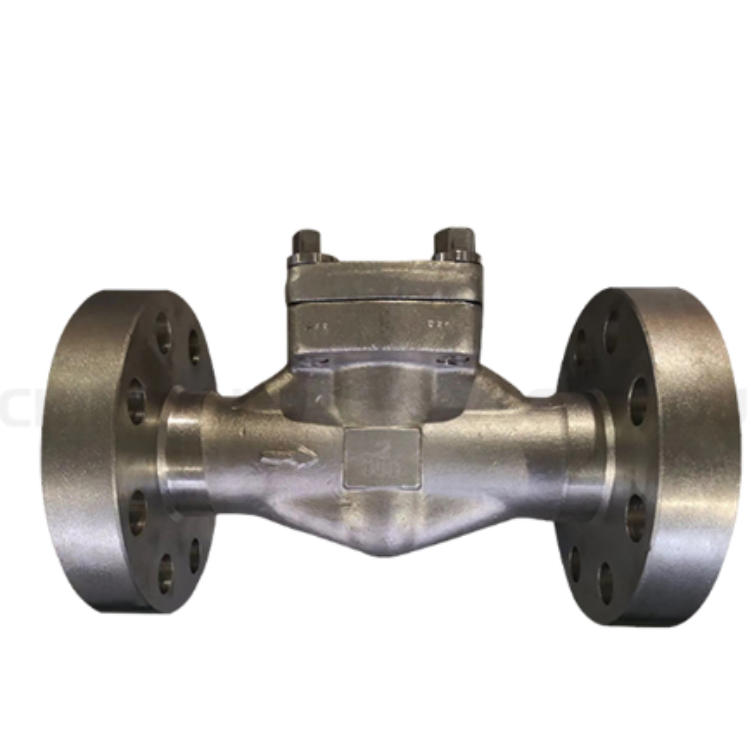

A hydrogen check valve protects compressors, electrolysers, and dispensers from reverse flow. In hydrogen service, the priorities are a low and stable cracking pressure, a non-slam closure that avoids pressure spikes, and seats that seal reliably against a gas with extremely low viscosity. Spring-loaded piston or dual-plate designs are common choices for this reason, and forged bodies are preferred at the higher pressure classes. You can see the typical construction in a forged check valve — the compact forged body and bolted cover are the configuration most hydrogen skid builders start from.

Bellow Seal and Globe Configurations

Wherever your process needs throttling, letdown, or venting, a globe-type body with a welded metal bellows stem seal gives you both flow control and a stem leak path that is welded rather than packed. This combination is particularly valued on high-purity hydrogen and on lines where any detectable leak would trigger an alarm or a shutdown.

Valve Type	Best Hydrogen Duty	Key Design Point	Typical Pressure Class
Floating ball	Small-bore gaseous H2 isolation	Seat load rises with pressure; verify soft-seat grade	Up to ~Class 600 / 100 bar
Trunnion ball	High-pressure H2 isolation, refuelling skids	Forged body, cavity management, anti-static bonding	Class 900 – 2500 / up to 700+ bar
Fully welded ball	Buried or inaccessible H2 pipeline sections	Welded body eliminates external leak paths	Class 150 – 2500

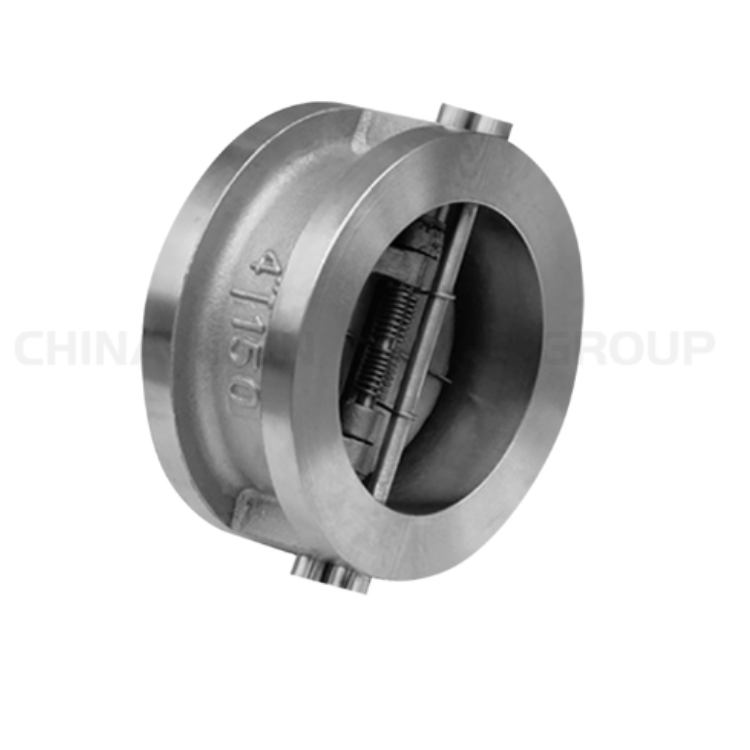

Check (piston / dual plate)	Compressor and dispenser backflow protection	Low cracking pressure, non-slam closure	Class 150 – 2500
Bellow seal globe	Throttling, letdown, vent lines	Welded bellows replaces packing as primary stem seal	Class 150 – 1500

What Standards Apply to Hydrogen Valves?

There is no single certificate that says "hydrogen approved." Instead, your valve sits inside a stack of codes: hydrogen-specific system standards, general piping codes, and valve product standards. Knowing which layer does which job lets you read a supplier's compliance claim quickly and ask the right follow-up question.

At the system level, ASME B31.12 is the dedicated ASME code for hydrogen piping and pipelines; it applies to gaseous and liquid hydrogen piping and adds material, welding, examination, and derating rules specifically because of hydrogen's effect on steel. On the station side, ISO 19880-1 defines the minimum requirements for gaseous hydrogen fuelling stations, including the equipment, materials, and components used in them. For vehicle-side connections, the SAE J2600 series covers fuelling connection devices, and ISO 14687 governs hydrogen fuel quality. For transportable cylinders and their valves, the ISO 11114 series addresses material compatibility with the gas contents.

Beneath those, the valve product standards you already know still carry most of the load. API 6D governs pipeline valves; API 600/602 cover gate and small-bore valve construction; API 607 and API 6FA address fire-safe testing; and ISO 15848-1/-2, together with API 622/623, define fugitive-emission qualification — the standard most buyers use to put a number on "low leakage." Pressure equipment directives (PED 2014/68/EU in Europe, ASME BPVC Section VIII in the US) apply to the valve as a pressure-containing component in the usual way.

Standard	Scope	Why It Matters to You
ASME B31.12	Hydrogen piping and pipelines (gaseous and liquid service)	Sets material, welding, examination, and design-factor rules for H2 systems
ISO 19880-1	Gaseous hydrogen fuelling stations — general requirements	Baseline for station equipment selection, including valves
SAE J2600 / J2601	Fuelling connection devices and fuelling protocols	Defines the interface conditions your dispenser valves must support
ISO 11114 series	Compatibility of cylinder and valve materials with gas contents	Reference for material compatibility of cylinder and valve parts
API 6D / API 600 / API 602	Pipeline, gate, and small-bore valve product standards	Construction, testing, and documentation baseline for the valve itself
API 607 / API 6FA	Fire-safe valve testing	Confirms the valve still seals after fire exposure
ISO 15848-1/-2, API 622/623	Fugitive emission qualification and testing	Puts a measurable leakage class on the stem and body seals
PED 2014/68/EU / ASME BPVC VIII	Pressure equipment legislation and design codes	Statutory conformity for the valve as a pressure part

One practical warning: always reference the specific edition of each standard in your specification, because hydrogen-related requirements are being revised rapidly as the industry grows. A quotation that says "per applicable standards" is not a specification; a quotation that lists the standards and editions, with the test reports to match, is.

FAQs

Can I use a standard industrial valve for hydrogen service?

Generally, no — not without a documented review. A standard valve may hold pressure, but it is unlikely to meet hydrogen expectations for stem leakage, soft-material permeability, material hardness, and leak testing. The correct approach is to treat hydrogen as a distinct service condition and re-specify materials, sealing, and testing accordingly, even if the resulting valve looks externally identical to a standard one.

What is the best material for a hydrogen valve body and trim?

Austenitic stainless steel, especially 316/316L, is the default choice for both body and trim because it retains ductility in hydrogen and welds predictably. Forged 316L dominates high-pressure hydrogen equipment. Qualified carbon steel is acceptable for lower-pressure pipeline service with hardness and weld controls, and nickel alloys such as Inconel 625/718 are used at the highest pressure-temperature combinations. The critical rule is to limit strength and hardness in every hydrogen-wetted steel part, including bolting.

What leakage rate should I specify for a hydrogen ball valve?

Specify leakage as a measurable criterion, not as an adjective. In practice, buyers reference seat leakage classes such as those in API 6D or ANSI/FCI 70-2, and fugitive-emission leakage classes per ISO 15848-1, and then require a helium or hydrogen leak test at service pressure to demonstrate compliance. The right number depends on where the valve sits: a vent line and a compressor suction line have very different tolerances for leakage.

What pressure rating do I need for a 350 bar or 700 bar hydrogen station?

As a rule of thumb, the pressure class must exceed the maximum working pressure by the design margin your code requires, which for hydrogen systems is typically substantial because of derating for the gas. Refuelling equipment at 350 bar and 700 bar generally sits in the high-pressure forged and Class 2500 range, and component ratings must be checked against the specific code edition your project is built to. Never assume an ASME class rating is automatically valid in hydrogen — confirm it against ASME B31.12 or the equivalent code in your jurisdiction.

How are hydrogen valves tested before delivery?

A credible test package includes a hydrostatic or pneumatic shell test, a seat leak test with a sensitive gas such as helium or hydrogen at operating pressure, stem and body-joint leak measurement referenced to a fugitive-emission class, and non-destructive examination of pressure-retaining welds. For liquid hydrogen valves, cryogenic testing is added. Ask for the test gas, the pressure, and the acceptance criteria in writing — those three numbers tell you more about the valve than any brochure.

Can we convert existing natural gas valves to hydrogen service?

Sometimes, but only after a formal assessment. Pipeline operators repurposing gas networks for hydrogen evaluate every component for material compatibility, weld hardness, leakage class, and remaining life. Valves with high-strength steel trim, unverified soft materials, or packed stems that cannot meet a hydrogen leakage criterion are usually replaced rather than converted. Treat conversion as an engineering project with its own documentation, not as a like-for-like swap.

What should I look for when comparing hydrogen valves manufacturers?

Look for material traceability to certificate level 3.1, in-house machining and welding with qualified procedures, recognised product certifications (API 6D, fire-safe, fugitive emission, PED or ASME), and a willingness to quote test methods and acceptance criteria rather than adjectives. Experience in adjacent demanding services — high-pressure gas, LNG, cryogenic, or sour service — is a good indicator, because the disciplines overlap heavily. When you evaluate hydrogen valves manufacturers, ask to see a sample data package from a previous order; the quality of that paperwork predicts the quality of the valve.

Do hydrogen valves need special maintenance in service?

Yes, mainly in two areas: leak monitoring and seal condition. Because hydrogen leaks are hard to see and smell, periodic instrumental leak checks on stem and body joints should be part of your routine, and any packing or soft-seal replacement must use hydrogen-compatible grades rather than generic spares. Keeping the system clean and dry also matters — moisture and hydrocarbon contamination degrade both seals and gas purity over time.

Conclusion

Hydrogen rewards precision and punishes assumptions. An H2 valve earns its place in your system through deliberate material selection, a sealing system engineered for a very small molecule, and a test regime that proves both — not through a label. If you work through the five steps above and demand documentation at every stage, you will end up with hardware that holds pressure, holds purity, and holds up under audit.

If you would like a second opinion on a specification, or a quotation with the test package spelled out, our engineering team is happy to help.

Talk to Lixin Valve Engineers Today

In a mineral processing plant, valves are rarely the biggest line item in your capital budget — but they are very often the reason a line stops. Slurry arrives at 30–60% solids by weight, particles range from a few microns to hundreds of millimetres, and pump discharge pressure cycles with every stroke. A valve sized for clean water duty does not survive that for long, which is why valve selection is a flow-sheet decision, not a purchasing afterthought.

This guide answers the question buyers, project engineers and maintenance planners ask most often: what valves are used in mining, and which type belongs in which service? You will find the five valve types that cover the overwhelming majority of mine and mill duties, the materials that actually hold up to abrasive and corrosive slurry, a five-step selection method you can apply to any line, and the three specification mistakes that cost your business the most money per year.

Quick answer Mining relies on six valve families: knife gate valves, slurry (Y-type) valves, pinch valves, butterfly valves, ball valves and check valves — plus lined and ceramic versions of each for abrasive or acidic duty. Knife gate valves carry the heaviest workload in the concentrator: tailings, cyclone feed, thickener underflow and launder isolation. Butterfly and ball valves are reserved for water, air and clean service, where their lower cost is safe.

What Valves Are Used in the Mining Industry?

The list of valve types used in the mining industry is deliberately short, because mine duty is punishing on three fronts at the same time. First, abrasion: quartz, magnetite and crushed rock grind away anything in the flow path. Second, corrosion: process water, reagents, acidic leach liquors and chloride-bearing solutions attack the wetted surfaces. Third, solids handling: particles settle, bridge and cement a partially closed valve shut. A valve that ignores any one of these will fail early, no matter how well it is made.

Because of that, valves in a mine are chosen by function rather than by brand family. There are only four functions you need to cover:

• Isolation — shutting a line down for maintenance. Handled by knife gate valves, gate valves, ball valves and lined butterfly valves.
• Throttling and control — holding flow or level at a set point. Handled by slurry control valves, pinch valves and specially trimmed butterfly valves.
• Backflow prevention — protecting pumps and headers when a pump stops. Handled by check valves, including slurry and wafer check designs.
• Diversion and distribution — routing slurry between lines, thickeners and launders. Handled by knife gate valves on manifolds and splitter boxes.

The mix changes as you move through the plant. In open-pit and underground dewatering, the duty is mostly water, so butterfly, gate and ball valves dominate. In the concentrator, abrasive slurry takes over and knife gate and slurry valves become the standard. In tailings and backfill you are dealing with thickened or high-density solids, where full-bore lined knife gates and pinch valves are the usual choice. In the smelter and refinery, chemistry drives the decision and lined, ceramic and alloy valves move to the front.

Which Valves Does Each Mining Service Need?

Most specification errors come from treating "mining" as a single service. It is not. A reagent dosing line and a cyclone feed line sit twenty metres apart and need completely different valves. Use the table below to map your own line list onto a valve type before you go to the market, and treat it as a starting point that your process engineer can adjust.

Mining service	Typical valve type	Why it fits	Watch out for
Tailings and slurry transfer lines	Heavy duty slurry knife gate valve, rubber or PU lined	Full bore, self-cleaning seat, replaceable wear parts	Line velocity above roughly 3 m/s accelerates wear sharply
Mill discharge and cyclone feed	Slurry (Y-type) valve or heavy duty knife gate valve	Straight flow path leaves no dead pocket for coarse particles	Throttling in this line destroys even lined valves quickly
Thickener and clarifier underflow	Knife gate valve or pinch valve	Copes with thickened, bridging-prone and settling solids	Settled solids cement a part-open gate; cycle valves fully
Pump suction and discharge isolation	Knife gate on suction, check valve on discharge	Short face-to-face length and low pressure drop	Never use a knife gate as a control or throttling valve
Reagent and chemical dosing	Lined butterfly valve, ball valve or lined plug valve	Bubble-tight isolation with corrosion-resistant wetted parts	Confirm the elastomer against the actual reagent, not the category
Process, reclaim and fire water	Butterfly valve, gate valve or ball valve	Low cost, low operating torque and easy to actuate	Abrasion is low here — do not over-specify premium trim
Compressed air and instrument air	Ball valve or butterfly valve	Tight shut-off with a fast quarter-turn operation	Oil-lubricated air attacks some elastomer seals
Leach, autoclave and corrosive process lines	Ceramic or fully lined ball valve and knife gate valve	Inert wetted surface resists acid and chloride attack	Rapid thermal cycling can crack monolithic ceramic parts

Read the table as a filter, not a rule book. Two adjacent lines with different solids concentrations, different pH and different velocities can justify different valves from the same manufacturer. The useful discipline is to write the service, the velocity and the chemistry next to every valve in your schedule — once you do that, most of the arguments about which valve to buy resolve themselves.

What Are the 5 Most Common Mining Valve Types?

Five valve types cover the vast majority of mining duties worldwide. Each one makes a different trade-off between flow path, shut-off quality, wear life and cost, and each has a service where it is clearly the right answer.

Valve type	Best for	Abrasion tolerance	Isolation quality	Relative cost	Main limitation
Knife gate valve	Tailings, cyclone feed, thickener underflow, solids isolation	High, when lined or hard-faced	Good to very good with a bidirectional seat	Medium	Not a throttling valve; body rating limits pressure
Slurry (Y-type) valve	Coarse-particle slurry needing a straight flow path	High with a replaceable lining	Good	Medium to high	Bulky body; the Y angle restricts some layouts
Butterfly valve	Water, air, dilute slurry and large diameters	Low to medium	Fair to good, depending on seat design	Low	The disc sits in the flow path and erodes
Ball and check valve	Clean water, drainage and backflow prevention	Low; ceramic versions are far higher	Excellent	Low to high	Not for coarse solids unless purpose-built

Knife gate valve — full bore with a cutting gate

The knife gate valve is the single most common valve on a mineral processing plant. Its gate is a thin, sharp-edged blade that travels down through the flow and shears through settled solids instead of jamming against them, and because the seat is compressed by the gate's travel rather than by fluid pressure alone, it seals reliably in on/off duty. The design costs little to buy and almost nothing to service: the body stays in the line while the gate, seat and packing are replaced. Its limits matter just as much as its strengths. A knife gate is an isolation valve, not a control valve — hold it part open in an abrasive line and the gate and seat will both be lost within a short time. It is also a moderate-pressure design, so high-head and autoclave duties need a different body. Variants matter in practice: through conduit designs give a completely unobstructed bore, lined and ceramic variants handle aggressive chemistry, and lugged or flanged bodies determine how the valve is bolted in. If you want the detail behind those choices, see our breakdown of through conduit knife gate valves and this honest look at knife gate valve pros and cons.

Slurry (Y-type) valve — straight flow path, replaceable lining

The slurry valve family solves a different problem. Where a knife gate introduces the body casting into the flow, a Y-type slurry valve keeps the bore almost perfectly straight, so coarse particles pass through without an impingement point to erode. That straight path is why slurry valve types are the default on mill discharge, cyclone feed and pump discharge lines in hard-rock plants, and why the design usually includes a replaceable rubber or polyurethane lining and a flushing port. The trade-offs are body size and cost: a Y-type valve takes up more space than a knife gate of the same nominal size, and the special trim pushes the price up. Both are worth paying when the alternative is replacing a valve every quarter. If your service combines heavy abrasion with aggressive chemistry, the lining technology matters more than the body material — our notes on lined knife gate valves in corrosive slurry service explain why.

Butterfly valve — a cheap, compact choice for dilute water services

Butterfly valves are the workhorses of mine water systems, not of slurry lines. They are light, short in face-to-face length, cheap in large diameters and need very little torque to operate, which makes them ideal for reclaim water, fire water, thickener overflow and air service. The weakness is inherent to the design: the disc sits squarely in the flow path, so abrasive slurry erodes the disc edge and the seat at the same time, and a high solids load can build up on the disc. Choose a butterfly valve where the medium is dilute and low-abrasion, and check the seat material against the chemistry. For a direct comparison of the two most frequently confused options, read knife gate valves vs butterfly valves.

Ball and check valves — isolation and backflow prevention

Ball and check valves together handle the clean end of the mine water circuit and the protection of pumps and headers. A ball valve gives you a quarter-turn, bubble-tight isolation with a bore that can be made full-port, and in ceramic-seated versions it becomes a genuinely abrasion-resistant valve for acidic or fine-particle duty — the trade-off being cost and a larger body. Check valves stop reverse flow when a pump trips, protecting the pump, the discharge header and the seal water system; slurry and wafer check designs exist precisely because a standard swing check will not survive coarse solids. Neither belongs on a coarse-solids slurry main, but neither should be left off your line schedule either.

Which Material Lasts in Mining Service?

Material selection is where most of the cost of a mining valve actually sits. Two mistake patterns are common: buyers choose a body material from a price list without knowing the slurry chemistry, or they assume that a harder material is always a better one. Both lead to premature failure. Abrasion and corrosion are separate mechanisms and they call for separate answers.

Wetted component	Common specification	Abrasion resistance	Corrosion resistance	Specify it when
Body — cast iron	Grey cast iron or ductile iron GJS-400-15	Low	Low	Utility water and low-pressure service only
Body — carbon steel	WCB to ASTM A216	Low to medium	Low	Higher pressure classes with neutral slurry
Body — stainless steel	CF8 (304) or CF8M (316) to ASTM A351	Low to medium	Good	Mildly acidic or chloride-bearing process water
Body — duplex stainless	Duplex 2205 or super duplex 2507	Medium	Very good	Seawater, chloride-rich and mildly acidic slurry
Gate or disc — hard-faced	410 or 420 stainless with a Stellite or tungsten-carbide overlay	High	Medium	Coarse particles at high velocity
Gate or disc — ceramic	Alumina Al₂O₃ 95–99%	Very high	Very high	Highly abrasive duty combined with acid attack
Lining — rubber	Natural rubber, EPDM or neoprene bonded to the body	High for coarse particles	Good	Slurry with particles coarser than about 1 mm
Lining — polyurethane	PU or UHMWPE liner	Very high for fine particles	Good	Fine, angular solids that cut rubber

The counter-intuitive rule worth remembering is that hardness alone does not predict wear life. Coarse particles larger than roughly one millimetre bounce and roll, and a resilient rubber or polyurethane lining absorbs that impact better than a metal surface — which is why rubber-lined slurry valves routinely outlast harder all-metal valves in the same line. Once the particles get finer and more angular, the mechanism flips: those particles cut rather than bounce, and polyurethane or ceramic wins.

Corrosion has to be checked separately and first, because it disqualifies materials that abrasion would otherwise favour. A standard stainless steel that performs well in water can pit rapidly in chloride-bearing process water, while carbon steel will corrode long before it wears out in acidic leach duty. That is why ceramic-lined and fully lined bodies exist: they remove the metal from the wetted surface entirely. When you write a specification, state the pH range, the chloride level, the maximum particle size and the operating temperature — a supplier who receives those four numbers can recommend a valve that will still be in service next year. Our ceramic products are a good example of how that reasoning plays out in practice: see the ceramic knife gate valve range for abrasive-plus-corrosive duty.

How to Select a Mining Valve in 5 Steps

Mining valve selection is a repeatable process. Work through the five steps below for each line in your schedule — the sequence matters, because each step narrows the field for the next one, and the data you gather in step one is exactly the data a supplier needs to quote accurately.

1. Define the service and the process data. Write down what the line actually carries: solids concentration by weight, maximum particle size, pH and chloride level, operating and design pressure, operating temperature, and whether the flow is continuous or batch. Capture the normal and maximum flow rate as well, because velocity is the single strongest driver of wear in a slurry valve. Without these numbers, any valve recommendation you receive is a guess.
2. Decide the function: isolation, throttling or backflow prevention. These three duties need different hardware and mixing them up is the most expensive mistake in the list. Isolation suits a knife gate, gate, ball or lined butterfly valve; throttling needs a purpose-built slurry control valve or pinch valve; backflow prevention needs a check valve matched to the solids load. If a single line genuinely needs both isolation and control, plan two valves rather than asking one to do both jobs badly.
3. Pick the valve type for that service, then the material. With the function fixed, choose the type from the service table above, and only then choose the wetted materials against the chemistry and particle size you recorded in step one. Handle corrosion first — it eliminates options — and abrasion second, by selecting the lining, hard facing or ceramic trim. Confirm the seal and packing elastomer against temperature and chemical exposure at the same time.
4. Confirm size, pressure class, connection and actuation. Order to the pipe: nominal size, flange standard and drilling pattern, face-to-face dimension, and body pressure rating — not just the flange rating. Decide at this stage whether the valve will be manual, pneumatic, electric or hydraulic, because the actuator choice affects the mounting, the air or power supply and the cost. Sizing for a slurry line is deliberately conservative: a slightly larger, slower line outlasts a smaller, faster one every time.
5. Plan the wear parts and the sourcing route before you place the order. Ask which components are designed to be replaced in situ, what the recommended spares holding is, and what the lead time is for a repeat order. A valve whose gate, seat or sleeve can be swapped out without cutting the line will repay the difference many times over. When you compare suppliers, compare on landed cost of a five-year maintenance cycle, not on unit price — this is where how to evaluate knife gate valve manufacturers becomes a practical exercise rather than a brand debate.

3 Common Mistakes When Specifying Mine Valves

Most premature valve failures on mine sites are not manufacturing failures. They are specification failures that were built into the line list before anyone phoned a supplier, and they tend to repeat across plants and commodities.

Mistake	What it costs your business	What to do instead
Buying by pipe size and price alone	The cheapest valve in an abrasive line is usually the most expensive per tonne processed	Start from particle size, velocity and pH, then size and select the valve
Ignoring line velocity	Wear rises steeply above roughly 3 m/s, and valves and elbows fail first	Design slurry lines for about 1.5–2.5 m/s and keep valves out of high-velocity zones
Using an isolation valve as a control valve	A part-open gate erodes, vibrates and leaks; gate and seat are both lost	Throttle with a slurry control or pinch valve and isolate with knife gates

There is a fourth pattern that deserves a mention because it is organisational rather than technical: buying each valve on price from a different vendor. Mixed sources mean mixed face-to-face dimensions, mixed spares and no single point of accountability when a valve fails early. Consolidating your mining valves with one supplier who understands slurry service makes spare parts predictable and gives you someone to call when a line behaves unexpectedly — this is the practical reason procurement teams ask for mining valves suppliers with slurry experience rather than for the lowest unit price.

FAQs

What is the most common valve used in mining?

The knife gate valve. It dominates isolation duty in concentrators because it is full bore, has a low profile, shears through settled solids and costs far less than a metal-seated ball valve at the same size. In most mills you will find knife gate valves on cyclone feed, tailings, thickener underflow and launder isolation, with butterfly and ball valves reserved for water and air service. If you are building a valve schedule for a new plant, start with knife gates and require a written justification for anything else.

How do you choose between a knife gate valve and a slurry valve?

Choose a knife gate when the duty is on/off isolation and the line carries coarse or settled solids. Choose a slurry or Y-type valve when the flow path must stay completely straight and you are willing to accept a bulkier body in exchange for a lower pressure drop and a replaceable lining. Many plants deliberately use both in the same circuit: slurry valves on the pump discharge, knife gates on the manifold branches. If the duty requires real throttling, neither is the right answer — look at a pinch valve or a dedicated slurry control valve first.

What body material should I specify for abrasive slurry duty?

Start with the chemistry, not the abrasion. If the slurry is near-neutral in pH and the particles are larger than about one millimetre, a rubber or polyurethane-lined ductile iron body usually delivers the lowest cost per hour of service. If the slurry is acidic, chloride-rich or hot, move to a duplex stainless, fully lined or ceramic-trimmed design, because abrasion-resistant cast iron will corrode long before it wears out. For fine, sharp and angular solids, polyurethane or ceramic outlasts rubber by a wide margin.

How long should a mining valve last before replacement?

There is no universal figure, because wear life is set by velocity, solids concentration, particle hardness and how often the valve cycles. In well-designed lines running about 1.5–2.5 m/s, a good quality lined knife gate valve with replaceable wear parts is normally planned for several years of service, with the gate, seat and sleeve treated as consumables. In overloaded lines running 4–5 m/s with sharp silica, the same valve can be down to months. Track valve life per line rather than per plant, so you can see which service has drifted out of specification.

Can a knife gate valve handle high pressure?

Standard wafer and lugged knife gate valves are not high-pressure valves — they are engineered for isolation at moderate pressure, which covers most mill, thickener and tailings duty. Where the duty is genuinely high pressure, such as autoclave feed, high-pressure grinding circuits or long high-head tailings pumping, you need a valve with a rated pressure-retaining body, such as a high-pressure gate valve or a metal-seated ball valve. Always confirm the body rating, not only the flange rating, against your design pressure and surge conditions.

What size and flange standard should I order for a mine pipeline?

Order from the pipe schedule, not from the old valve. You need the nominal size, the flange standard and drilling pattern, the face-to-face dimension and the pressure class, because a replacement that does not match puts stress on both flanges and on the pipe. For abrasive slurry lines, a full-bore valve in the same nominal size as the pipe avoids a step that erodes. If your line uses a non-standard drilling pattern, tell the manufacturer at the enquiry stage — it is far cheaper than a field adapter.

Do tailings lines need a different valve from process water lines?

Yes, because they are different engineering problems. Tailings lines carry high solids concentration, settle out when flow stops and often run at high head, so they need full-bore, lined or hard-faced isolation that can shear through a settled bed. Process water lines are dilute and low-abrasion, so a butterfly or standard gate valve is usually sufficient at a fraction of the cost. Specifying the same premium valve on both wastes budget, while putting the water valve on tails guarantees early failure.

Conclusion: Choose the Valve Your Slurry Actually Needs

Mining valve selection comes down to a simple discipline. Identify the service, record the process data honestly, decide whether the valve must isolate or throttle, and only then choose the type and the material. Do that and your valves stop being a recurring maintenance problem and start being a predictable consumable line in your budget. Skip it, and you will keep paying for the same lesson in the same line, year after year.

The three levers that move wear life the most are also the cheapest to fix on paper: keep slurry velocity in the 1.5–2.5 m/s band, keep isolation valves fully open or fully shut, and keep the wear parts replaceable. Everything else — body material, lining, ceramic trim, actuation — is a detail that follows from those three decisions.

Specify Your Mining Valves With Confidence Tell us your slurry duty — solids concentration, particle size, pH and design pressure — and get a valve type and material recommendation for every line in your schedule. Send Us Your Line Schedule

Choosing the wrong valve on a ship is never a small mistake. A seized gate valve on a ballast line, a pitted butterfly disc in a seawater cooling circuit, or a check valve that chatters itself loose on an overboard line can stop operations, trigger a port-state finding, or force an unscheduled drydock. When you are sourcing for a newbuild, a retrofit, or a fleet-wide replacement program, you need valves that survive salt water, constant vibration, and years of limited access for maintenance.

This guide walks you through marine valve selection the way a purchasing engineer would actually do it: what a marine valve is, why material choice dominates the decision, the five valve types your vessel or offshore platform depends on, a five-step specification process, the standards and class approvals your buyer will ask for, and the mistakes that cost shipyards and shipowners the most money. By the end, you will be able to write a specification that a valve manufacturer can quote accurately — instead of a part number that gets re-engineered halfway through the project.



What Is a Marine Valve?

A marine valve is a valve engineered and certified for use in the piping systems of ships, offshore platforms, and other floating or fixed marine structures. On the surface it may look identical to an industrial valve — a body, a closure element, a stem, an actuator — but the duty behind a hull plating is different in four ways that directly change what you should buy.

First, there is the medium. Seawater is one of the most corrosive common fluids in industry: high chloride content, high conductivity, biofouling, and, on many systems, elevated temperature near heat exchangers. Second, there is the environment. A valve in an engine room lives with vibration from machinery, salt-laden humid air, and space and weight budgets that are far tighter than a plant on shore. Third, there is access. When a valve fails at sea, you cannot simply isolate the line and wait for a site crew; repair options are limited to what is on board and who is on board. Fourth, there is certification. Nearly every valve connected to a safety-critical system — bilge, ballast, fire main, fuel — needs approval from the vessel's class society before the ship can be registered and insured.

In practice, marine valves appear in bilge and ballast systems, seawater cooling, fire-fighting mains, fuel oil transfer and service lines, hydraulic and pneumatic circuits, cargo systems, and overboard discharges. If you are responsible for procurement, the practical takeaway is this: you are not buying a generic valve with a marine sticker on it. You are buying a valve whose body material, seat design, and test documentation were all chosen for salt-water service and verified by a classification body.

Why Does Material Choice Matter Most for Marine Valves?

Ask any superintendent which component fails first in a seawater system, and the answer is almost always the same: the valve. Corrosion in marine service is not a slow, predictable process — it is a combination of chloride pitting, crevice corrosion under gaskets and seats, galvanic attack wherever dissimilar metals touch, and erosion in high-velocity zones around a partially open disc. The material you specify determines whether your valve lasts the ship's drydock interval or fails two voyages in.

The table below summarizes the materials most commonly used for marine valve bodies and trims, and where each earns its keep.

Material	Seawater Resistance	Best Suited For	Watch Out For
Bronze / gunmetal	Excellent	Seawater cooling, fire mains, deck wash, general service lines	Cost of copper alloys; verify genuine bronze, not brass, for critical lines
Nickel aluminum bronze (NAB)	Excellent, high strength	High-velocity seawater, pump discharge, offshore duty	Higher unit cost; needs correct heat treatment
Stainless steel 316/316L	Good	Fuel oil, lube oil, hydraulic and chemical lines	Pitting and crevice corrosion in stagnant, warm seawater
Duplex / super duplex	Excellent	Offshore seawater injection, high-pressure systems	Premium price; welding requires qualified procedures
Ductile / cast iron + epoxy coating	Moderate	Low-pressure ballast and utility lines where budget dominates	Any coating damage exposes bare metal to rapid attack

Two practical rules will protect your budget more than any single alloy choice. The first is to match the material to the circuit, not to the catalog: bronze for seawater, stainless for hydrocarbons, duplex or NAB where velocity and pressure are high. The second is to keep the galvanic series in mind — a bronze valve bolted between steel pipework with no insulation becomes a corrosion cell, and the weakest metal pays for it. When you compare quotes from different suppliers, always ask what body and trim material is actually being offered for the price, because this is the single biggest driver of both cost and service life.

What Are the 5 Valve Types Every Ship Needs?

Walk through any engine room and you will find dozens of valve designs, but nearly all of them fall into five families. If your business supplies, installs, or maintains marine piping systems, these are the five you should be able to specify from memory.

Valve Type	Primary Function	Typical Marine Service	Operation
Marine ball valve	Fast, tight shutoff	Fuel transfer, seawater, hydraulic circuits	Quarter-turn lever
Marine gate valve	Full-bore on/off	Ballast, bilge, fire main	Multi-turn handwheel
Marine butterfly valve	Isolation and throttling	Seawater cooling, HVAC, large-bore low-pressure lines	Quarter-turn lever or gear
Marine check valve (non-return)	Backflow prevention	Bilge, overboard, pump discharge	Automatic, self-acting
Marine globe valve	Throttling and regulation	Fuel, steam, feed and dosing lines	Multi-turn handwheel

Ball valves — isolation on small-bore lines.

A marine ball valve gives you a quarter-turn from fully open to fully closed, with a full-port bore that drops pressure loss to almost nothing. That combination — speed, tight shutoff, low torque — is why ball valves dominate fuel transfer lines, hydraulic panels, seawater service up to moderate sizes, and anywhere a crew needs a positive, instantly readable open/closed position. For your specification, the decisions that matter are floating versus trunnion-mounted ball above DN50, the seat material (PTFE for most services, reinforced or metal-seated for high temperature), and whether the handle has a positive locking feature so vibration cannot creep a valve closed. If you are comparing bore options, our guide to full-port vs reduced-port ball valves explains where the smaller bore is acceptable and where it is not.

Gate valves — infrequent on/off, large bore.

Gate valves are the workhorse wherever a line stays open for weeks and is operated rarely: ballast mains, bilge suctions, fire mains, and crossover lines. The rising or non-rising stem gives you a clear visual indication of position, and the full-bore design keeps flow resistance low when the line is running. Because a gate valve should never be used to throttle — a partially open gate vibrates, erodes, and can jam — you need to pair it with the right duty in your P&ID. On ships, space and weight push many buyers toward resilient-wedge or compact-bonnet designs, while high-pressure and high-temperature services still justify cast steel bodies with pressure-seal bonnets. If a gate valve is on your bill of materials, review the cast wedge gate valve as a benchmark for body design, seat configuration, and available pressure classes before you lock in a supplier.

Butterfly valves — space-saving, seawater cooling.

Where weight and space decide the design, the marine butterfly valve wins. A wafer or lug body occupies a fraction of the face-to-face length of a gate valve, costs less per DN, and a single gear operator or lever covers sizes up to very large bores. That is why seawater cooling circuits, HVAC, and engine-room utility lines are dominated by butterfly valves. The trade-offs you must manage are throttling behavior at small openings and seat selection: EPDM handles seawater comfortably, while PTFE or metal seats are needed where temperature or chemical exposure rules elastomers out. Concentric (zero-offset) designs cover most shipboard duties; double-offset bodies earn their place on larger bores and higher pressures. For a production reference, review a production-grade concentric butterfly valve to see how body, disc, and seat options are typically offered.

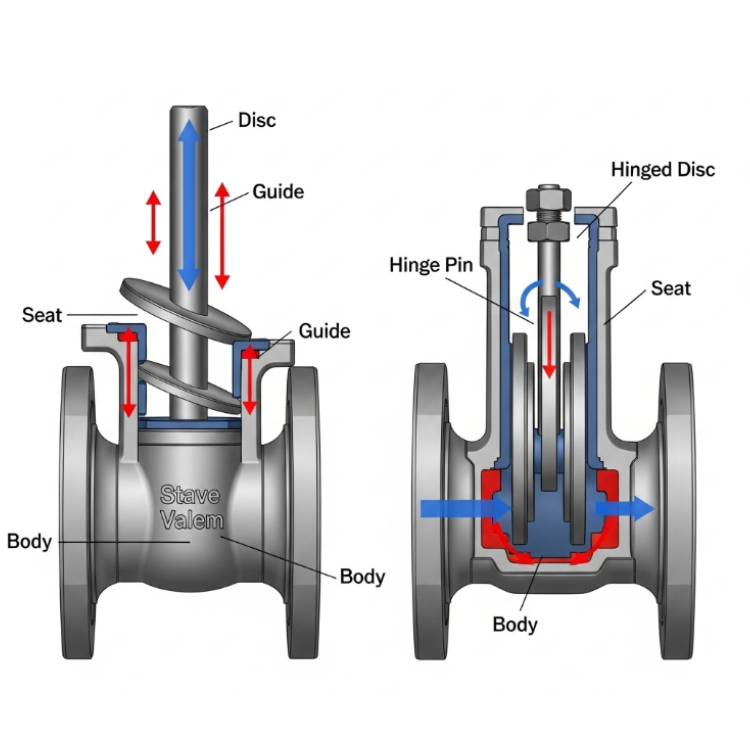

Check valves — backflow prevention.

A marine check valve — often called a non-return valve in marine documentation — protects pumps and prevents flooding, and it does so with no operator at all. Every overboard discharge, bilge suction, and pump discharge line needs one, and classification rules are explicit about where they are mandatory, particularly where a failed pump could let sea water flood back into a compartment. Your main choices are swing, dual-plate, and lift types: swing checks suit low-velocity, large-bore lines; dual-plate checks offer the fastest closing and the lowest slam risk on higher-pressure circuits; lift checks suit vertical and pulsating duties. Size them for actual flow, not line size — an oversized check valve flutters, wears its disc, and eventually fails to seal. For selection details, our complete guide to check valves covers the two designs most commonly found in shipboard service.

Globe valves — throttling and regulation.

When your line needs to be regulated rather than simply opened or closed — fuel viscosity control, steam conditioning, dosing, sample lines — a globe valve is the correct family. Its seat geometry is designed for flow control, and multi-turn operation gives the crew precise authority over the orifice. The cost of that control is pressure drop and a longer face-to-face dimension, which is exactly why globe valves sit alongside, not instead of, gate and butterfly valves in a well-designed system. Upstream protection matters here: a globe valve or a control valve fitted downstream of debris will erode its seat quickly, which is why pairing it with a Y-type strainer is standard practice on fuel and seawater lines where solids are present.



How to Choose a Marine Valve in 5 Steps

With the five families clear, selection becomes a disciplined checklist rather than a judgment call. Use the five steps below on every line item before you send an RFQ — they take minutes on paper and prevent the two most expensive outcomes in marine procurement: a valve that cannot be installed, and a valve that must be replaced at the next survey.

Step	What You Define	Why It Matters
1. Medium & temperature	Seawater, fuel oil, lube oil, steam, gas; min/max operating temperature	Drives body material, seat material, and whether a soft-seated design is even permissible
2. Pressure class & size	DN/NPS, design and test pressure (PN10–PN40 / Class 150–2500)	Sets wall thickness, bolting, and flange rating; an underrated valve is a safety finding
3. Material vs medium	Body and trim alloy per the material table above	Determines corrosion life; the largest single cost driver in marine valves
4. Connection & space	Flanged (ASME B16.5 / EN 1092), wafer, lug, threaded; face-to-face and handle clearance	A valve that does not match the flange drilling or the access space stops installation
5. Approval & documentation	Class society, test standard, material certificates (EN 10204 3.1), drawings	Without them the valve cannot be accepted at survey, however good the hardware is

One more habit worth building: write the medium, size, pressure, material, and connection into every RFQ line, and ask each bidder to confirm all five in writing. It removes the most common source of disputes between what you ordered and what arrives on the quay.

Which Standards and Approvals Apply to Marine Valves?

Approvals are where marine procurement differs most from general industry. Your buyer — a shipyard, a shipowner, or an offshore operator — will not accept a valve on price alone; they will ask which class society has approved it and which test standard it was verified against. The table below covers the framework you will encounter.

Approval / Standard	What It Covers
Class society rules (DNV, ABS, Lloyd's Register, Bureau Veritas, CCS, KR, RS)	Type approval and survey of valves for hull and machinery systems; "DNV approved valves" is the phrase most buyers search for, but the requirement is always the society named on the vessel's certificate
ISO 5208 / EN 12266-1	Industrial valve testing and leakage-rate classification for shell, seat, and backseat
API 598	Valve inspection and testing, widely referenced for petroleum and hydrocarbon service
ASME B16.34 / EN 12516	Pressure–temperature design ratings for steel valve bodies
ASME B16.5 / EN 1092 / GOST 33259	Flange dimensions and drilling, so the valve mates with your pipework and class-approved drawings
ISO 15848-1	Fugitive-emission performance of stem sealing, increasingly demanded offshore

Documentation is part of the approval, not an afterthought. For a classed vessel, expect to provide material certificates to EN 10204 3.1, hydrostatic test records, and — where the society requires it — witnesses during testing. When you evaluate marine valves manufacturers, ask specifically which certificates they issue per shipment and whether their quality system is audited: a factory certified to ISO 9001, producing to API and EN test standards and holding CE marking, will move through class survey far faster than one that treats paperwork as a custom job.

3 Common Mistakes When Specifying Marine Valves

Most valve problems reported after delivery are not manufacturing defects. They are specification errors — decisions made at the drawing stage that no factory can engineer around. These are the three we see most often.

Mistake	What Happens at Sea	How to Avoid It
1. Choosing material for price, not medium	Standard iron or 304 bodies pit through in seawater service within one drydock interval	Specify bronze, NAB, or duplex for every seawater-wetted valve, and state it in the RFQ
2. Using the wrong valve family for the duty	Gate valves throttled as control valves erode seats; ball valves used for modulation seize; oversized checks slam and wear	Match each line to the five-family table: isolation, throttling, or backflow prevention
3. Leaving approval and documentation to the end	Valves arrive without 3.1 certificates or the named class approval and are rejected at survey, delaying delivery	Confirm the class society, test standard, and certificate package in the RFQ — before award

Notice the pattern: all three mistakes are invisible at purchase and expensive at sea. A slightly cheaper body material can look like a saving on the PO and become a replacement program two years later. When your business compares marine valve quotes, weigh documentation completeness and material traceability on the same line as price.

FAQs

What is the difference between a marine valve and a standard industrial valve?

A marine valve is selected and certified for salt-water service, shipboard vibration, tight spaces, and class-society survey. In practice that means corrosion-resistant body materials, compact face-to-face dimensions, anti-vibration details on operators, and a documentation package (material certificates, hydrostatic tests, class approval) that standard industrial valves often do not carry. You can sometimes use an industrial valve in a non-critical shipboard utility line, but safety-related systems will require class-approved hardware.

Which material should I choose for seawater service — marine bronze valve or stainless steel?

For continuous seawater contact, bronze and nickel aluminum bronze generally outperform standard 316 stainless, especially where flow is slow or stagnant, because 316 is vulnerable to chloride pitting and crevice corrosion in warm seawater. Stainless steels remain the right choice for fuel, oil, and chemical lines, while duplex and super duplex alloys push seawater performance to offshore pressures. Match the alloy to the circuit, not to a single "best" material — the material table earlier in this guide maps each one to its ideal service.

What does "DNV approved valves" actually mean for my purchase?

It means the valve design has been type-approved, or the specific production batch surveyed, by DNV — one of the major classification societies. The practical rule: your valve must be approved by the society that classes the vessel, which could equally be ABS, Lloyd's Register, Bureau Veritas, CCS, KR, or RS. When you issue an RFQ, name the society and the rule edition, and ask the manufacturer to state in writing which approval applies to the exact valve type, size, and pressure class you are buying.

How do I decide between a marine ball valve and a marine butterfly valve?

Use a ball valve when you need tight shutoff, full bore, and fast operation on smaller lines — fuel transfer, hydraulics, and utility circuits. Use a butterfly valve when size, weight, and cost dominate, especially on larger-bore seawater cooling and utility lines where a wafer body saves significant face-to-face space. As a rough rule of thumb, ball valves dominate small-bore duties, butterfly valves dominate large-bore low-pressure duties, and both coexist in every engine room.

What is a marine non-return valve and where is it mandatory?

A marine non-return valve (check valve) allows flow in one direction only and closes automatically to prevent reverse flow. Classification rules require them on bilge suction and discharge arrangements, overboard discharges, and pump discharges — anywhere backflow could flood a compartment or damage a pump. Choose the type by duty: swing checks for low-velocity large bores, dual-plate checks where fast closure prevents slam, and lift checks for vertical or pulsating lines.

How do I evaluate marine valves manufacturers before placing a bulk order?

Check four things in order. First, certifications: a quality system such as ISO 9001 plus product-level standards (API, CE, and where relevant TÜV-verified testing) tells you the factory runs to recognized processes. Second, material control: ask how they verify incoming alloys — reputable foundries and factories use spectrometers and issue EN 10204 3.1 certificates. Third, test capability: hydrostatic and seat testing to ISO 5208, EN 12266-1, or API 598 with records you can review. Fourth, references and documentation samples: a manufacturer confident in its export business will send test reports and certificate templates before you ask twice.

How often should marine valves be maintained?

Follow your vessel's planned maintenance system and the drydock or special-survey cycle as the outer boundary, but inspect high-duty valves — seawater cooling, bilge and ballast, and fuel — at every scheduled machinery overhaul. Practical checks include stem packing leakage, operability (a valve that has not been exercised for a year is a valve that may not operate), seat tightness on safety-relevant lines, and condition of protective coatings. Keeping spare seat kits, seals, and stems for critical sizes on board costs far less than a fabrication delay in port.

Conclusion

Selecting marine valves is a system decision, not a parts decision. Get the material right for the medium, match each of the five valve families to its duty, run the five-step specification on every line item, and treat class approval and documentation as part of the product rather than paperwork attached to it. Do that consistently, and the valves you buy will outlast the survey cycles they were designed for — with fewer emergency orders, fewer findings, and lower lifetime cost for your fleet or your client's project.

When you are ready to turn a specification into a quotation, talk to a manufacturer that already works to the standards in this guide.

Need a Reliable Marine Valve Supplier? Send us your line size, medium, pressure class, and required standard — our engineers will recommend the right valve and quote your project. Request a Quote

When your business handles toxic, flammable, or high-value process fluids, even a small stem leak can turn into a costly shutdown, an environmental violation, or a safety incident. That is exactly the risk a bellow seal valve is engineered to remove. Unlike a standard valve that relies on gland packing around the stem — a design that wears down, requires constant tightening, and still allows fugitive emissions to escape — a bellow seal valve uses a welded metal bellows to fully enclose the stem, creating a sealed barrier between your process media and the outside atmosphere.

If your operations run in oil & gas, chemical, petrochemical, power, or pharmaceutical environments, you already know how much scrutiny you are under to hit near-zero emission targets while keeping production uptime high. This guide walks you through what a bellow seal valve is, how it works, the types available for your business, and how to choose the right one for your application. As a manufacturer with decades of valve engineering experience, Lixin Valve builds bellow seal valves that are tested and certified to help you meet exactly these demands.

What Is a Bellow Seal Valve?

A bellow seal valve is a specialized industrial valve — most commonly a globe or gate valve — that replaces traditional stem packing with a corrugated metal bellows. The bellows is welded at one end to the valve stem and at the other end to the valve bonnet, forming a fully sealed, flexible chamber around the stem. As you operate the valve, the bellows compresses and expands with the stem's up-and-down travel, so the stem itself never has direct contact with the atmosphere.

For your business, this design difference is not a minor engineering detail — it is the difference between a valve that will eventually leak, because packing degrades, dries out, or loosens over time, and a valve that stays mechanically sealed for the working life of the bellows. That is why bellow seal valves are specified so heavily wherever fugitive emissions carry regulatory, safety, or financial consequences for your operation.

How Does a Bellow Seal Valve Work?

Understanding bellow seal valve working helps you evaluate whether it is the right fit for your process line. Inside the valve, the metal bellows seals form a continuous, welded envelope around the stem. When you turn the handwheel or actuate the valve, the stem moves axially, and the bellows flexes accordingly — expanding as the stem rises and compressing as it lowers — without ever breaking the seal.

Most bellow seal valves also include a secondary sealing system, typically conventional gland packing, positioned above the bellows. This backup packing is not there to do the primary sealing job — it is a safety net for your operation. If the bellows were ever to fail after years of cyclic service, the secondary packing prevents an uncontrolled release, giving your maintenance team time to schedule a planned repair instead of facing an emergency shutdown. This layered design is a major reason bellow seal valves are trusted for continuous, high-cycle applications in your plant.

Types of Bellow Seal Valves for Your Business

Choosing between valve types depends on whether your application needs precise flow control or straightforward on/off isolation. Here is how the two most common configurations compare for your plant.

Bellow Seal Globe Valve

A bellow seal globe valve is one of the most widely specified configurations because globe valves are already the go-to choice for throttling and regulating flow. When you pair that flow-control capability with a welded bellows seal, you get precise control without sacrificing containment — ideal for steam lines, high-temperature process fluids, and any application where your business cannot tolerate stem leakage during frequent open-and-close cycling.

Bellow Seal Gate Valve

A bellow seal gate valve, by contrast, is built for on/off isolation service where you need a full-bore, low-pressure-drop shutoff with the same zero-leakage stem protection. This makes it a strong fit for pipelines and isolation points in oil & gas, chemical processing, and power generation, where your team needs dependable, leak-tight shutoff without the added maintenance burden of repacking valve stems on a recurring basis. You can review Lixin Valve's bellow seal gate valve specifications to see exactly how it is engineered for these conditions, or browse the complete range of bellow valves Lixin Valve manufactures for demanding industrial service.

Still weighing whether a bellow seal design is the right call for your line, or whether a conventional stem valve would do the job? Our detailed piston valve vs. bellow seal valve comparison breaks down the trade-offs so you can match the right valve to your application.

Metal Bellows Seals vs. Rubber Bellow Seal: Which Fits Your Application?

Not every bellows seal is made the same way, and the material you choose has a direct impact on how your valve performs under pressure, temperature, and chemical exposure. Metal bellows seals — typically fabricated from stainless steel, Inconel, or other corrosion-resistant alloys — are the standard for industrial process valves because they hold up under high pressure, extreme temperature swings, and aggressive media without degrading over your equipment's service life.

A rubber bellow seal, on the other hand, is generally used in lower-pressure, lower-temperature applications such as certain water treatment, general industrial, or instrumentation setups. Rubber offers flexibility and cost savings for lighter-duty service, but it is not built to withstand the thermal cycling, high pressure ratings, or corrosive chemical exposure that metal bellows seals are engineered for. If your business runs process lines with steam, hydrocarbons, or aggressive chemicals, a metal bellows seal is almost always the safer long-term investment.

Factor	Metal Bellows Seal	Rubber Bellow Seal
Typical Pressure Rating	High (Class 150–2500)	Low to moderate
Temperature Range	Cryogenic to high-temperature steam	Narrow, generally ambient service
Chemical Resistance	Excellent with correct alloy selection	Limited, media-dependent
Fatigue Life / Cycling	Engineered for high-cycle, long-term service	Shorter service life under repeated cycling
Typical Industries	Oil & gas, chemical, power, pharma	General water treatment, light industrial
Upfront Cost	Higher	Lower

Bellow Seal Valve Advantages for Your Operations

When you weigh the total cost of ownership, the bellow seal valve advantage becomes clear fairly quickly. Yes, the upfront cost is typically higher than a packed-stem valve, but for your business the payback comes from reduced maintenance labor, fewer unplanned shutdowns, lower risk of environmental fines, and a safer plant for your workforce. The table below summarizes the core benefits your team can expect.

Advantage	What It Means for Your Business
Zero fugitive emissions at the stem	Helps your facility meet API 622 and other emissions compliance targets
No routine stem repacking	Lowers your maintenance labor and spare parts spend over time
Built-in secondary packing backup	Gives your team advance warning instead of a sudden leak event
Safer handling of hazardous media	Reduces operator exposure risk to toxic or flammable process fluids
Long, predictable service life	Supports better lifecycle planning and lower total cost of ownership

Where Your Business Can Put a Bellow Seal Valve to Work

Because bellow seal valves are built to contain hazardous or high-value media without leakage, they show up across nearly every process-heavy industry. In oil & gas, you will find them isolating and throttling lines carrying hydrocarbons under high pressure. In chemical and petrochemical plants, they protect your operations from corrosive or toxic media where any leak carries serious safety consequences. Power generation facilities rely on bellow seal globe valves for high-temperature steam service, while pharmaceutical and specialty chemical producers use them to maintain strict containment standards. If your business operates in any of these sectors, a bellow seal valve is very likely already part of your specification requirements — or should be.

How to Choose the Right Bellow Seal Valve for Your Business

Selecting the right valve for your line comes down to a handful of practical decisions your engineering team needs to work through together.

• First, confirm your operating temperature and pressure range, since these determine whether a metal bellows seal or a lighter-duty rubber bellow seal is appropriate.
• Second, check media compatibility — corrosive or high-purity fluids usually call for a specific alloy bellows rather than a standard grade.
• Third, think about how often the valve will cycle open and closed, since high-cycle service benefits most from the fatigue-resistant properties of welded metal bellows seals.
• Finally, decide whether your application needs flow throttling, which points you toward a bellow seal globe valve, or straightforward isolation, which points you toward a bellow seal gate valve.

You do not have to make this call alone. Lixin Valve's engineering team works directly with businesses like yours to match bellows material, valve type, and pressure class to your exact process conditions — and to back it up with the certifications your compliance team requires.

Request a Free Bellow Seal Valve Quote

FAQs

1. What is a bellow seal valve used for?

A bellow seal valve is used anywhere your business needs to prevent stem leakage of hazardous, toxic, flammable, or high-value process fluids, commonly in oil & gas, chemical, petrochemical, and power applications.

2. How is a bellow seal valve different from a standard packed valve?

A standard valve seals the stem with compressible packing that wears over time and requires periodic tightening or replacement. A bellow seal valve instead uses a welded metal bellows that fully encloses the stem, eliminating the leak path packing alone cannot fully close.

3. What is the typical service life of metal bellows seals?

Service life depends on cycle frequency, temperature, and media, but properly specified metal bellows seals are engineered for tens of thousands of operating cycles, often matching or exceeding the expected lifespan of the rest of your valve.

4. Can a bellow seal valve still leak?

In rare cases of bellows fatigue failure, yes — which is exactly why Lixin Valve builds a secondary gland packing system into most bellow seal valves, so your team gets a warning sign long before any uncontrolled release occurs.

5. What is the difference between a bellow seal globe valve and a bellow seal gate valve?

A bellow seal globe valve is designed for flow throttling and regulation, while a bellow seal gate valve is designed for full-bore on/off isolation. Your application's need for flow control versus simple shutoff determines which one fits your line.

6. When should your business use a rubber bellow seal instead of a metal one?

A rubber bellow seal can be a cost-effective option for lower-pressure, lower-temperature, less corrosive applications such as some water treatment or general industrial systems. For process lines with high heat, pressure, or aggressive chemicals, a metal bellows seal is the safer choice.

7. Are bellow seal valves compliant with fugitive emissions standards like API 622?

Bellow seal valves are one of the most effective designs for meeting stringent fugitive emissions requirements, since the welded bellows eliminates the stem leak path that packing-only designs cannot fully control.

8. What materials are used for metal bellows seals?

Common materials include stainless steel grades such as 304 and 316, along with high-performance alloys like Inconel and Hastelloy for extreme temperature or highly corrosive applications.

9. Do bellow seal valves cost more than standard valves?

Yes, the upfront cost is generally higher due to the precision welding and materials involved. Most businesses recover that investment through reduced maintenance, fewer shutdowns, and lower compliance risk over the valve's service life.

10. How do you select the right bellow seal valve manufacturer for your project?

Look for a manufacturer with proven material traceability, relevant certifications, in-house testing capability, and experience supplying your specific industry.

Conclusion

A bellow seal valve is one of the most reliable ways your business can protect people, product, and compliance standing all at once. Whether you need a bellow seal globe valve for precise throttling or a bellow seal gate valve for dependable isolation, choosing the right bellows material and configuration up front will save your team time, money, and risk down the line.

Talk to Our Valve Engineers Today

When you're specifying valves for a new pipeline, a processing unit, or a distribution network, one question comes up almost immediately: which plug valve type actually fits your system? Plug valves look simple on the outside — a cylindrical or tapered plug rotating inside a body — but the differences between lubricated, non-lubricated, eccentric, multi-port, and double block and bleed designs can make or break your uptime, your maintenance budget, and your safety record. This guide walks you through every major plug valve type, how each one performs under pressure and corrosive media, and how to match the right design to your operation.

What Is a Plug Valve?

Before you compare types, it helps to be clear on what a plug valve is in the first place. A plug valve is a quarter-turn valve that uses a cylindrical or tapered plug with a hollow bore to start, stop, or throttle flow through a pipeline. When you rotate the plug 90 degrees, the bore lines up with the pipe to let media flow freely; turn it another quarter turn and the solid part of the plug blocks the passage completely. Because the sealing surfaces are large and the design has very few moving parts, you get dependable, bubble-tight shutoff with a valve that's easy to operate and simple to maintain compared to many other quarter-turn designs.

If you want the full technical breakdown — port configurations, sealing mechanisms, and material options — you may find it useful to read our complete guide to plug valves before working through the type-by-type comparison below.

Why the Plug Valve Type You Choose Matters for Your Business

It's tempting to treat "plug valve" as a single product category and move on to price comparisons. But the plug valve type you select has a direct impact on how your operation performs day to day. Choose a lubricated plug valve for a dry gas service that doesn't need constant lubrication, and you'll end up with unnecessary maintenance cycles and higher operating costs. Choose a standard plug valve for a highly corrosive chemical line, and you risk premature seat wear, leakage, and unplanned shutdowns that cost your business far more than the valve itself.

On the other hand, when you match the plug valve type to your pressure class, media, temperature range, and duty cycle, you reduce downtime, extend service life, and lower your total cost of ownership. For a B2B buyer managing multiple assets or a project engineer specifying valves for a new build, that difference shows up directly in your maintenance budget, your safety audits, and your ability to hit production targets without unplanned interruptions.

The Main Plug Valve Types You Should Know

Industrial plug valves aren't a one-size-fits-all product. Manufacturers design different plug valve types to solve different sealing, pressure, and media challenges. Here's what you need to know about each one before you make a purchasing decision.

Lubricated Plug Valves

Lubricated plug valves use a thin film of sealant injected between the plug and the body to reduce friction, improve sealing, and make operation smoother even under high torque. You'll typically find lubricated plug valves specified for larger pipe sizes and higher-pressure services, since the lubricant film compensates for the increased force needed to rotate a larger plug against the body. This makes lubricated plug valves a strong option if your operation runs continuous, high-pressure gas or liquid lines where reliable, repeatable sealing is critical. The trade-off is that you'll need a periodic lubrication schedule to keep the seal performing as designed, so factor that into your maintenance planning.

Non-Lubricated Plug Valves

Non-lubricated plug valves replace the grease-based sealing system with a resilient sleeve or liner — often PTFE or another engineered polymer — that wraps around the plug and provides a self-lubricating, low-friction seal. Because you're not injecting sealant on a schedule, these valves require significantly less routine maintenance, which is a major advantage if your team is managing dozens or hundreds of valves across a facility. Non-lubricated designs also tend to perform well as a corrosion-resistant plug valve option, since PTFE and similar liners resist attack from a wide range of acids, caustics, and process chemicals that would otherwise degrade metal-to-metal seals over time.

Eccentric Plug Valves

Eccentric plug valves use an offset plug that lifts away from the seat as it opens, rather than rotating in continuous contact with it. That eccentric motion dramatically reduces seat wear and operating torque, which is why you'll often see this type specified for slurry, wastewater, and other services carrying suspended solids that would quickly erode a standard plug valve's seating surface. If you're trying to decide between a conventional plug valve and this offset design for an abrasive or fibrous media application, our detailed plug valve vs eccentric plug valve comparison breaks down the performance differences so you can match the design to your specific process conditions.

Multi-Port Plug Valves

Standard plug valves are two-way, but multi-port designs — three-way and four-way configurations — let you direct, divert, or mix flow between multiple pipeline branches using a single valve body. If your process requires switching between two supply lines, diverting flow to a bypass, or blending two streams, a multi-port plug valve can replace two or three separate two-way valves. That reduces the number of components you need to install, maintain, and monitor, which simplifies your piping layout and can meaningfully lower your total installed cost on a new project.

Double Block and Bleed (DBB) Plug Valves

A double block and bleed plug valve gives you two independent sealing surfaces on either side of the flow path, with a bleed port between them that lets you vent or verify the cavity without disturbing either seal. This design is especially valuable if your operation needs to isolate a section of pipeline for maintenance, inspection, or instrument calibration without shutting down the entire system, since it provides a verified double barrier between the process media and the work zone. DBB plug valves are widely specified in oil and gas, petrochemical, and other high-hazard applications where positive isolation is a safety requirement rather than a nice-to-have. You can learn more about how this configuration works in our article on double block and bleed (DBB) plug valves.

Plug Valve Types Compared

Use the table below as a quick reference when you're narrowing down which plug valve type fits your application, pressure class, and maintenance capacity.

Plug Valve Type	Best Suited For	Maintenance Needs	Typical Applications
Lubricated	High-pressure gas & liquid lines	Scheduled lubrication required	Oil & gas transmission, refining
Non-Lubricated	Corrosive chemicals, general service	Low, self-lubricating sleeve	Chemical processing, water treatment
Eccentric	Slurries, solids-laden media	Low, minimal seat contact	Wastewater, mining, pulp & paper
Multi-Port	Flow diversion & blending	Moderate	Tank farms, batching systems
Double Block & Bleed	Positive isolation, safety-critical service	Moderate, periodic bleed port checks	Oil & gas, petrochemical, high-hazard plants

Choosing the Right Plug Valve Type for High-Pressure and Corrosive Applications

If your operation runs high-pressure gas transmission lines or heavy liquid services, a high pressure plug valve needs more than a rugged body — you need a design with a proven pressure rating, adequate wall thickness, and a sealing system that stays tight as pressure cycles up and down. Lubricated plug valves and metal-seated DBB designs are commonly specified for these duties because their sealing mechanisms are engineered to hold under sustained pressure without excessive wear.

For corrosive service, your material selection matters as much as your valve type. A corrosion-resistant plug valve typically pairs a non-lubricated, PTFE-lined design with a body material suited to your specific media — stainless steel for many acids and chlorides, or specialty alloys for the most aggressive chemical streams. If your project falls under API 6D or a similar industry standard, make sure the plug valve type and material combination you select is rated and documented accordingly, since that documentation is often required for project approval, insurance, and long-term asset records. Getting this match right the first time saves your business the cost and disruption of replacing valves mid-project.

Industries That Depend on the Right Plug Valve Type

Because plug valve types serve such different performance needs, you'll find them across a wide range of industries, each with its own priorities. Oil and gas operators rely on lubricated and DBB plug valves for pipeline isolation, wellhead control, and gas transmission, where positive shutoff and safety documentation are non-negotiable. Chemical processing plants lean on non-lubricated, corrosion-resistant designs to handle aggressive media without constant seal replacement. Water and wastewater utilities favor eccentric plug valves for their ability to handle solids-laden flow with minimal wear, while power generation and mining operations often need a mix of these types depending on the specific line in question. Whatever industry your business operates in, matching the plug valve type to your process conditions is the single biggest factor in getting long-term, reliable performance out of your valve investment.

Why Businesses Choose Lixin Valve for Industrial Plug Valves

When you're sourcing industrial plug valves for a new project or replacing aging assets, the manufacturer behind the valve matters just as much as the design itself. Lixin Valve manufactures lubricated, eccentric, and double block and bleed plug valves engineered for high-pressure, corrosive, and abrasive service across oil and gas, chemical processing, water treatment, and industrial manufacturing applications. If you're comparing suppliers, our overview of the top plug valve manufacturers gives you a broader view of the market and where Lixin Valve fits within it.

Explore Lixin Valve's Plug Valve Range

Frequently Asked Questions About Plug Valve Types

1. What is a plug valve used for?

You use a plug valve to start, stop, or throttle the flow of liquids, gases, and slurries in a pipeline. Its quarter-turn operation and large sealing surface make it a common choice anywhere you need reliable, bubble-tight shutoff, from oil and gas pipelines to chemical processing lines and water treatment systems.

2. What's the difference between a lubricated and non-lubricated plug valve?

A lubricated plug valve uses an injected sealant film between the plug and body to reduce friction and improve sealing, requiring periodic lubrication. A non-lubricated plug valve uses a resilient sleeve, often PTFE, that self-lubricates and needs far less routine maintenance, making it a popular choice for corrosive or general-purpose service.

3. Are plug valves suitable for high-pressure applications?

Yes. A properly rated high pressure plug valve, particularly a lubricated or metal-seated design, is engineered to maintain tight sealing under sustained and cycling pressure. Always confirm the pressure class and material certification match your specific line conditions before you finalize your order.

4. What is a double block and bleed (DBB) plug valve?

A double block and bleed plug valve provides two independent seals on either side of the flow path with a bleed port in between, letting you verify isolation or vent the cavity without disturbing either seal. It's widely used where positive isolation is a safety requirement, such as pipeline maintenance and instrument calibration.

5. How do you choose a corrosion-resistant plug valve for chemical service?

You'll want to match both the valve type and the material to your specific media. Non-lubricated, PTFE-lined plug valves paired with a compatible body material, such as stainless steel or a specialty alloy, generally provide the best resistance to aggressive chemicals and reduce the risk of premature seal failure.

6. What's the difference between a plug valve and a ball valve?

Both are quarter-turn valves, but a plug valve uses a cylindrical or tapered plug with a larger sealing surface, while a ball valve uses a spherical ball with a smaller contact area. Plug valves often handle abrasive or viscous media better, while ball valves can offer lower operating torque in clean service.

7. Can plug valves handle abrasive or slurry media?

Yes, particularly eccentric plug valves, which are specifically designed with an offset plug that lifts away from the seat during operation. This minimizes contact and wear from suspended solids, making eccentric plug valves a strong fit for wastewater, mining, and slurry applications.

8. What materials are industrial plug valves made from?

Common body materials include cast iron, ductile iron, carbon steel, and stainless steel, while sealing components are often PTFE or other engineered polymers. Your choice depends on the pressure, temperature, and corrosiveness of the media running through your system.

9. How often do plug valves need maintenance?

It depends on the type. Lubricated plug valves typically need scheduled lubrication on a set interval, while non-lubricated designs require far less routine attention. Regardless of type, periodic inspection is recommended to confirm the seal and actuator are performing as expected.

10. Where can I source reliable industrial plug valves for my project?

Working with an experienced manufacturer that can document material certifications, pressure ratings, and quality control is essential for any B2B project. Lixin Valve supplies a full range of industrial plug valves engineered for high-pressure and corrosive service, with support to help you specify the right type for your application.

Get a Quote on Your Plug Valve Type

If you're responsible for keeping fluid or gas moving safely through your business's piping systems, you've probably asked yourself: what is a discharge valve, exactly, and why does it matter to your operations? A discharge valve is a mechanical component installed at the outlet side of a pump, tank, or pressurized system that controls the direction, flow rate, and pressure of the fluid as it exits. Instead of letting liquid or gas flow unchecked, a discharge valve gives you control — you decide when flow starts, when it stops, and how much pressure your system can safely handle before it's released.

For your business, this isn't just a technical detail. The right discharge valve protects your equipment from backflow damage, prevents costly downtime, and keeps your team safe from sudden pressure surges. Whether you run a water treatment facility, a manufacturing plant, a marine vessel, or a wastewater pumping station, understanding how discharge valves work — and which type fits your system — is one of the most practical investments you can make in operational reliability. In this guide, you'll learn exactly what a discharge valve does, the main types available, where they're used, and how to choose the right one for your business.

Explore Lixin Valve's Full Product Range

How Does a Discharge Valve Work?

At its core, a discharge valve sits at the point where fluid leaves a pump or pressurized vessel and enters the rest of your piping network. As pressure builds inside the system — usually from a pump pushing liquid forward — the valve opens to allow that fluid to exit in a controlled manner. Once the pump stops or pressure drops below a certain threshold, most discharge valves close automatically to prevent the fluid from flowing backward into the pump or tank.

This backflow prevention function is critical for your business. Without it, your pump could suffer from water hammer, reverse rotation, or mechanical wear that shortens its lifespan considerably — and that means more maintenance calls and more unplanned downtime for your operation. Many discharge valves also incorporate a safety or relief function, meaning they open automatically if pressure inside the system exceeds a safe limit, protecting downstream pipework, seals, and connected equipment from rupture.

Depending on the design you choose, you'll find discharge valves that operate purely on pressure differential (like check valves), others that you control manually with a handle or lever, and some that integrate with automated control systems for remote operation. The specific mechanism matters less than the outcome your business needs: reliable, one-directional flow control that keeps your system running the way it's supposed to, shift after shift.

Types of Discharge Valves You Should Know About

Not every discharge valve is built the same way, and choosing the wrong type for your application can lead to premature failure, leaks, or inefficient flow control. Below is a breakdown of the most common types your business is likely to encounter, along with what each one is best suited for.

Valve Type	Primary Function	Best Suited For
Sump Pump Discharge Valve	Prevents backflow of water into the sump pit after the pump shuts off	Basements, crawl spaces, stormwater management systems
Check Valve (Pump Discharge)	Allows flow in one direction only, protecting the pump from reverse flow	Municipal water systems, HVAC circulation, industrial pumping stations
Safety Discharge Valve	Automatically releases excess pressure to protect the system from damage	Boilers, compressors, pressurized tanks, steam systems
Quick Discharge Valve	Rapidly releases fluid or air pressure in a short cycle time	Pneumatic systems, emergency shutoff applications, cylinder actuation
Discharge Ball Valve	Uses a rotating ball to start or stop flow with a quarter-turn	High-pressure pipelines, chemical processing, marine discharge systems
Water Discharge Valve	General-purpose valve for controlling water outflow from tanks or pumps	Irrigation, wastewater treatment, fire protection systems

Beyond these general categories, you'll also come across discharge valves engineered for specific installation constraints. If your piping runs in a straight line and you need a compact, low-friction connection, a pipe connection discharge valve gives you a direct, space-saving fit. If your system requires a change in flow direction without adding extra fittings, an angle type discharge valve lets you redirect flow while maintaining full control. And if you're working with tanks or vessels that need complete, sediment-free drainage, a flat bottom discharge valve is designed specifically to eliminate dead zones where residue or particulate can collect.

Common Applications of Discharge Valves for Your Business

Discharge valves show up across a wide range of industries, and there's a good chance your business relies on one somewhere in its operations even if you've never thought about it directly. In water and wastewater treatment, discharge valves regulate the flow of treated or untreated water between tanks, pumps, and distribution lines, helping you meet regulatory standards while protecting downstream infrastructure. In marine and shipbuilding applications, discharge valves manage the flow of seawater, bilge water, and engine coolant — and if you've ever wondered which type of valve is typically used on engine discharges, the answer usually comes down to check valves and ball valves, chosen for their reliability under vibration and their ability to prevent backflow into engine cooling systems.

In HVAC and building services, discharge valves keep circulation loops balanced and prevent hot or cold water from flowing backward through your system when pumps cycle off. Fire protection systems depend on discharge valves to control water release during suppression events, where split-second reliability isn't optional — it's the whole point. Food and beverage processing facilities use sanitary-grade discharge valves to move product through production lines without contamination risk, while chemical processing plants rely on corrosion-resistant discharge valves to handle aggressive fluids safely. Even construction sites use discharge valves for dewatering excavations and controlling runoff, which means the applications for your business may extend further than you initially expect.

How to Choose the Right Discharge Valve for Your Operations

Selecting a discharge valve isn't a one-size-fits-all decision, and getting it wrong can cost your business more in downtime and replacement parts than the valve itself. Start by evaluating your flow rate and pipe size, since an undersized valve creates unnecessary pressure drop while an oversized one wastes material and installation space. Next, confirm your system's pressure rating — a valve rated below your operating pressure is a safety risk, while one rated far above it may add cost without added benefit.

Material compatibility matters just as much as sizing. If your business handles corrosive chemicals, seawater, or high-temperature fluids, you'll need a discharge valve built from materials that can withstand that environment without degrading over time. Stainless steel, cast iron, bronze, and various alloy options each perform differently depending on what's flowing through your system. You'll also want to think through your connection type — flanged, threaded, or pipe-connection styles each suit different installation layouts, so matching the valve to your existing piping configuration will save you time and labor during installation.

Finally, consider whether your operation would benefit from automation. If your team manages multiple discharge points across a facility, a valve that integrates with remote monitoring or automated control systems can reduce manual oversight and catch problems before they escalate. Balancing these factors against your budget and expected maintenance schedule will help you land on a discharge valve that performs reliably for years, not months.

Talk to Lixin Valve About Your Discharge Valve Needs

Why Businesses Choose Lixin Valve for Discharge Valve Solutions

When you're sourcing discharge valves for your business, you need a manufacturer who understands that every installation has its own constraints — pipe layout, pressure demands, fluid type, and budget all play a role.

At Lixin Valve, you'll find a range of discharge valve configurations engineered to meet these real-world requirements rather than a single generic design stretched across every use case.

If your project calls for a streamlined, in-line installation, the pipe connection discharge valve is built for exactly that scenario, minimizing fittings and reducing potential leak points. When your piping needs to change direction without sacrificing flow control, the angle type discharge valve gives your business a reliable way to redirect flow efficiently. And for tanks or vessels where complete drainage is non-negotiable, the flat bottom discharge valve ensures your system empties fully, without leaving residue behind that could compromise product quality or hygiene standards.

Installation & Maintenance Tips for Your Discharge Valve

Even the best discharge valve won't perform well if it's installed or maintained incorrectly. Make sure your valve is installed in the correct orientation — many discharge valves, particularly check valves and ball valves, are directional, and installing one backward will prevent it from functioning at all. Keep debris and sediment away from valve seats during installation, since even small particles can prevent a proper seal and lead to leaks down the line.

Once your discharge valve is in service, build a routine inspection schedule into your maintenance program. Look for signs of corrosion, unusual noise during operation, or slow closure, all of which can indicate wear on internal components. For valves handling abrasive or chemically aggressive fluids, more frequent inspection intervals will help you catch problems before they turn into unplanned shutdowns. Replacing seals and gaskets proactively, rather than waiting for a failure, is almost always less expensive than the downtime a failed discharge valve can cause for your business.

FAQs

1. What is a discharge valve used for?
A discharge valve controls the flow of fluid or gas as it exits a pump, tank, or pressurized system. It manages flow direction, prevents backflow, and in many designs, protects your equipment from excess pressure.

2. What's the difference between a discharge valve and a check valve?
A check valve is actually one type of discharge valve — it's designed specifically to allow flow in only one direction. "Discharge valve" is the broader category that includes check valves, ball valves, safety valves, and other designs used at a system's outlet point.

3. Which type of valve is typically used on engine discharges?
Engine discharge lines, especially in marine applications, typically use check valves or ball valves. These designs handle vibration well and reliably prevent water or coolant from flowing back into the engine when it's not running.

4. How does a sump pump discharge valve work?
A sump pump discharge valve, usually a check valve, opens when the pump is actively pushing water out and closes automatically once the pump stops, preventing that water from draining back into the sump pit.

5. What is a safety discharge valve and when do I need one?
A safety discharge valve automatically releases fluid or gas once pressure exceeds a preset safe limit. You'll want one anywhere pressure could build to dangerous levels, such as boilers, compressors, or sealed pressure vessels in your facility.

6. Can a discharge ball valve handle high-pressure applications?
Yes. Discharge ball valves are commonly chosen for high-pressure pipelines and industrial applications because their quarter-turn design provides a tight seal and dependable performance under demanding conditions.

7. How do I choose the right water discharge valve for my facility?
Start with your flow rate, pipe size, and operating pressure, then factor in the fluid type and required connection style. Matching these details to the valve's specifications will help you avoid premature wear or performance issues.

8. What materials are discharge valves made from?
Common materials include cast iron, stainless steel, bronze, and various corrosion-resistant alloys. Your choice should depend on the fluid you're handling, the temperature range, and whether your environment is prone to corrosion.

9. How often should discharge valves be inspected or replaced?
This depends on your application, but a general routine inspection every few months is a reasonable starting point for most industrial systems. Valves handling abrasive or corrosive fluids may need more frequent checks, and seals or gaskets should be replaced proactively rather than after a failure occurs.

Get a Quote for Your Discharge Valve Project

If you are sourcing flow control equipment for a plant, pipeline, or treatment facility, you have almost certainly run into the question of concentric vs eccentric butterfly valve designs. The two look similar from the outside — both use a rotating disc inside a circular body — but the way that disc is positioned changes everything about how the valve seals, how long it lasts, and how much pressure and temperature it can handle. Choosing the wrong one can mean premature seat wear, unplanned shutdowns, or a valve that simply cannot hold the pressure your system demands.

In this guide, you will get a straightforward, practical breakdown of the difference between concentric and eccentric butterfly valves, including where each design excels, what double and triple eccentric butterfly valves add to the equation, and how to match the right valve to your application. Whether you run a water treatment plant, a chemical processing line, or a high-pressure industrial pipeline, this article will help your business make a confident, informed decision.

Concentric vs Eccentric Butterfly Valve at a Glance

Before going deep into the mechanics, here is a fast comparison you can use to orient your team. A concentric butterfly valve has its stem, disc, and body all sharing the same centerline, which makes it economical and easy to install, but limits it to lower-pressure, general-purpose service. An eccentric butterfly valve offsets the disc from the centerline by one, two, or three axes, which reduces friction on the seat, extends service life, and allows the valve to handle far higher pressures and temperatures. If your operation runs demanding process conditions, an eccentric design is usually the safer long-term investment.

Feature	Concentric Butterfly Valve	Eccentric Butterfly Valve
Disc/Stem Offset	Zero offset — centerline design	One, two, or three offsets from centerline
Seat Material	Rubber or resilient elastomer	Metal, PTFE, or reinforced composite
Sealing Friction	Higher — disc rubs the seat through the full stroke	Lower — disc lifts away from the seat during rotation
Typical Pressure Rating	Up to roughly Class 150	Class 150 to Class 900 or higher (triple eccentric)
Temperature Range	Limited by elastomer seat, generally lower	Wide range, suitable for high-temperature steam and process lines
Service Life	Moderate, seat wear over time	Long, minimal seat contact extends valve life
Typical Applications	Water distribution, HVAC, general industrial	Wastewater, chemical processing, oil & gas, high-pressure steam
Upfront Cost	Lower	Higher, but often lower total cost of ownership

What Is a Concentric Butterfly Valve?

A concentric butterfly valve is built on a simple centerline design: the stem passes directly through the center of the disc, and the disc sits on the same central axis as the pipe bore. When you close the valve, the disc rotates a quarter turn and presses evenly against a resilient rubber or elastomer seat that lines the valve body. This 360-degree contact is what gives concentric valves their reliable, bubble-tight shutoff at moderate pressures.

Because the design is straightforward and uses fewer specialized components, a concentric butterfly valve is typically the most cost-effective option for your business when you need dependable on/off or throttling control in water, air, or low-pressure process lines. You will commonly see this valve type specified for municipal water distribution, HVAC systems, general industrial piping, and other applications where pressures and temperatures stay within moderate limits. The trade-off is that because the disc is always in contact with the seat during rotation, the seat experiences continuous rubbing, or "wiping," friction. Over time and thousands of cycles, this wiping action gradually wears the seat, which is why concentric valves are not typically the first choice for high-cycle, high-pressure, or abrasive-media applications.

What Is an Eccentric Butterfly Valve?

An eccentric butterfly valve solves the seat-wear problem by offsetting the disc from the pipe centerline. Instead of the disc rubbing against the seat throughout the entire stroke, the offset geometry allows the disc to lift cleanly away from the seat almost immediately after the valve begins to open, and to approach the seat only in the final degrees of closure. This "cam action" dramatically reduces friction, which means less wear, a longer service life, and a valve that can be engineered with tougher seat materials to handle far more demanding conditions.

There are three common configurations your business may encounter, and understanding the difference matters when you are specifying equipment for a project:

• Single eccentric: The disc is offset on one axis, providing a modest reduction in seat friction compared to a concentric design.
• Double eccentric: The disc is offset on two axes, which further reduces contact and wear while improving sealing performance at higher pressures.
• Triple eccentric: The disc is offset on three axes, and the sealing surface is typically metal-to-metal, allowing near-zero seat contact until the final closing torque locks the disc into place.

If your facility handles corrosive media, high-cycle applications, or pressures that would quickly degrade a rubber-seated valve, an eccentric design is generally the better long-term investment for your operation.

Double Eccentric Butterfly Valve: Balancing Performance and Value

A double eccentric butterfly valve is often the sweet spot for businesses that need meaningfully better performance than a concentric valve without moving all the way up to the cost and complexity of a triple offset design. With two axes of offset, the disc lifts away from the seat earlier in the opening cycle, which reduces torque requirements, minimizes wear, and allows for tighter shutoff at moderate-to-high pressures. This makes the double eccentric butterfly valve a strong fit for wastewater treatment, water intake systems, and industrial process lines where you need dependable, long-life performance without the premium price tag of a fully metal-seated triple offset valve.

Triple Eccentric Butterfly Valve: Built for Extreme Conditions

When your business operates in the most demanding environments — high-pressure steam lines, high-temperature chemical processing, oil and gas pipelines, or power generation — a triple eccentric butterfly valve is often the only design that can reliably keep up. The third offset, combined with a laser-cut, torque-seated metal seal, allows this valve to achieve zero-leakage, bidirectional shutoff even under extreme pressure and temperature swings, all while virtually eliminating the friction-related wear that shortens the life of concentric and even double eccentric valves. If your project specification calls for a high pressure butterfly valve or a high performance butterfly valve rated for repeated high-cycle duty, the triple eccentric design deserves serious consideration.

How to Choose Between Concentric and Eccentric for Your Business

The right choice ultimately comes down to your operating conditions, budget, and long-term maintenance strategy. Ask yourself the following questions as you evaluate your options:

• What pressure class does your system require? If you are working within moderate limits, a concentric valve may be all your business needs. If you are pushing into Class 300 and above, look toward double or triple eccentric designs.
• How often does the valve cycle? High-cycle applications wear out rubber seats faster, making eccentric designs more cost-effective over the life of the equipment.
• What media are you handling? Corrosive, abrasive, or high-temperature media generally call for metal-seated eccentric valves rather than resilient-seated concentric ones.
• What is your total cost of ownership target? A concentric valve costs less upfront, but an eccentric valve can reduce downtime, replacement frequency, and maintenance labor over years of service.

For many businesses, the most practical approach is to standardize on concentric valves for lower-demand utility lines while specifying eccentric — double or triple, depending on severity — for critical process and high-pressure applications. This hybrid strategy lets you control costs without compromising reliability where it matters most.

Maintenance Considerations for Long-Term Reliability

No matter which valve type your business selects, a proactive maintenance program is essential to getting the full expected service life out of your equipment. Eccentric valves, in particular, benefit from routine inspection of the seat and disc alignment, since even a well-engineered offset design can develop leakage paths if torque settings drift or debris accumulates on the sealing surface. If your operation runs eccentric butterfly valves in a wastewater or treatment environment, you can review our detailed guide on key maintenance practices for eccentric butterfly valves in wastewater treatment for practical, field-tested tips that can extend valve life and reduce unplanned downtime.

Why Businesses Choose Lixin Valve

At Lixin Valve, we manufacture a full range of industrial butterfly valve solutions, from cost-effective concentric designs for general service to high-performance double and triple eccentric valves engineered for the most demanding pressure, temperature, and corrosion conditions. Our team works directly with procurement and engineering teams to match the right valve to your specific application, backed by rigorous quality control and material traceability your business can rely on.

Talk to Our Valve Experts Today

FAQs

1. What is the main difference between concentric and eccentric butterfly valves?
The main difference is disc position. A concentric valve has its disc and stem centered on the pipe axis, while an eccentric valve offsets the disc by one, two, or three axes to reduce seat friction and improve pressure and temperature performance.

2. Is a double eccentric butterfly valve better than a concentric one?
For higher-pressure or high-cycle applications, yes. A double eccentric butterfly valve generally offers longer service life, lower torque requirements, and better sealing performance than a concentric design, though it typically costs more upfront.

3. What is a triple eccentric butterfly valve used for?
Triple eccentric butterfly valves are used in high-pressure, high-temperature, and zero-leakage applications such as steam systems, oil and gas pipelines, and power plants, where a metal-seated, torque-seated design is required for reliable long-term shutoff.

4. Can concentric butterfly valves handle high pressure?
Concentric butterfly valves are generally rated for low-to-moderate pressures, commonly up to around Class 150. For higher pressure requirements, an eccentric or triple eccentric butterfly valve is the more suitable choice for your business.

5. Which valve type has a longer service life?
Eccentric butterfly valves, especially double and triple eccentric designs, typically offer a longer service life than concentric valves because the offset geometry minimizes seat friction and wear during operation.

6. What industries use eccentric butterfly valves?
Eccentric butterfly valves are widely used in wastewater treatment, chemical processing, oil and gas, power generation, and other industries that require reliable performance under demanding pressure, temperature, or corrosive conditions.

7. Do eccentric butterfly valves cost more than concentric valves?
Yes, eccentric butterfly valves generally have a higher upfront cost due to their more complex geometry and metal or composite seating. However, their extended service life often results in a lower total cost of ownership for your business.

8. What is the difference between resilient-seated and metal-seated butterfly valves?
Resilient-seated valves, common in concentric designs, use rubber or elastomer seats suited to moderate conditions. Metal-seated valves, common in double and triple eccentric designs, use metal or reinforced composite seats built for high pressure, high temperature, and abrasive service.

9. How do I choose between concentric and eccentric butterfly valves for my project?
Evaluate your required pressure class, cycle frequency, media type, and total cost of ownership goals. Lower-demand utility lines often suit concentric valves, while critical, high-pressure, or high-cycle applications typically call for eccentric designs.

10. Does Lixin Valve manufacture both concentric and eccentric butterfly valves?
Yes. Lixin Valve manufactures a complete range of concentric, double eccentric, and triple eccentric butterfly valves engineered to meet a wide variety of industrial pressure, temperature, and application requirements.

Ready to Specify the Right Valve for Your Business?

Choosing between a concentric and eccentric butterfly valve does not have to be complicated once you understand how each design performs under your specific operating conditions. Whether your business needs a cost-effective concentric valve for general service or a high-performance triple eccentric valve for demanding industrial applications, Lixin Valve has the engineering expertise and manufacturing capability to support your project from specification through delivery.

Request a Quote From Lixin Valve
